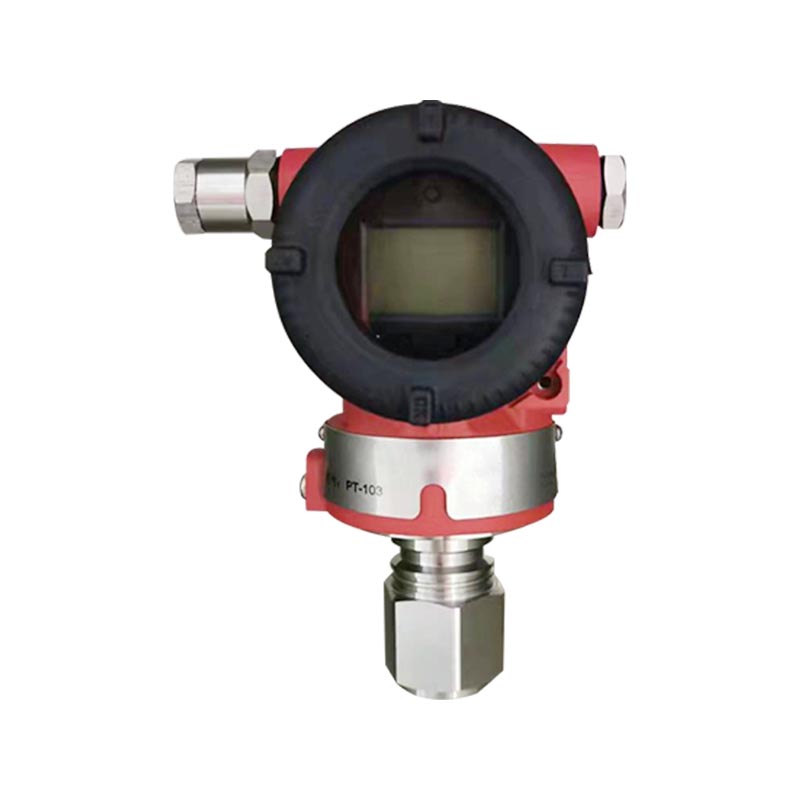

XG3051T differentialis pressura / absoluta pressura transfusor

Product Introduction
XG3051T 3051T series intelligens directa pressionis transmissionis connexa, in duobus speciebus in promptu est: pressionis coniecturae et pressionis absolutae; Adoptatio capacitiva sentiendi, 316L diaphragma, 4-20mA HART output, 24VDC copia potentiae, accuratio 0.075-0.15% FS, libitum LCD, localis/manualis calibrationem sustinens, testam explosionis, testam IP65, amplis coverage, impactionem resistentiae, bonam diuturnitatem stabilitatis, directe inauguratus in processu tibiarum, nullum opus pressionis accessoriis.

Praecipua applicationes:
Pressura vaporum, liquorum et vaporum metire; Adhibentur in petrochemico, chemica, potentia, metallurgia, aqua, curatione, et oleo et reticulis gasi pipelini; genus pressum absolutum idoneum est vacuo, pressioni negativo, distillationis et distillationis conditionibus; MODULUS pressionis adhibita est ad vigilantiam pressionis fistularum ordinariarum et arearum piscinarum et cum DCS/PLC systemata potestate coniuncta.

Contact Us
PREV：XG3051T differentialis pressura / absoluta pressura remotis transfusorDEINDE：Nullus proximus articulum
FAQ Euismod Specifications Eget Specifications Institutionem Processus Connection Instructiones Specificationes corporis
Q1: Quomodo inter XG3051T coniecturam pressionis et absolutae pressionis exempla distinguere, et inuicem adhiberi possunt?
A: pressione atmosphaerica locali innititur, et pressio absoluta in vacuo innititur. Ferramenta folla diversa sunt et directe mutari non possunt; genus pressionis absolutae praeponitur condicionibus vacuis operantibus, dum coniecturae pressionis genus praeponitur ordinariae pressionis pipelini.

Q2: Signum output est 4-20mA. An protocollum CERVUS sustinet?
A: XG3051T vexillum cum 4-20mA HART venit, quod manually pro parametris componi potest, vel caput locale LCD ad valorem pressionis localiter videndum eligi potest.

Q3: Utrum medium directe attingat transfusorem diaphragmate, et cum qua materia sit continuatio?
A: Connexio directa structurae mediae diaphragma directe contactus, et vexillum diaphragma est 316L chalybs immaculata; Instrumenta mordantia valida requirunt praeviam confirmationem condicionum operativarum et selectio materiarum membranarum specialium.

Q4: Quae sunt rationes communes pro transmittente output defectum et jump numerorum?
A: Primum, reprehendo si 24V potestas copia est normalis et si quae sunt nexus solveris in wiring; Secundo, investigare impulsum et obstructionem processus instrumentorum; Rese et calibrate cum HART moderatoris iterum, et ambitum occasus pro quibusvis abnormitatibus preme.

Q5: Quid in-site ambitus et explosio-probationis gradus XG3051T idoneus est?
A: Praesidium campester IP65, subsidia explosionis-probationis lectio; Apta petrochemical, chemica, aqua curatione, potentia, et aliis applicationibus on-site; Temperaturae altae fuge ambitus vibrationum et ambitus fortes excedentes, et temperatura media productam speciem extensionis non excedens.

Reference accurate ad adjusting range
(Including zero‑based linearity, hysteresis and repeatability) ±0.075% Si TD＞10 (TD = Maximum Range / Adaequatum Range), deinde: ±(0.0075 TD)%

Ambiens Temperature Effectus
Range Code Totalis effectus in -20℃ ~ 65℃
B/L ±(0.30×TD 0.20)%×Span
alii ±(0.20×TD 0.10)%×Span
Range Code Totalis effectus in -40℃ ~ -20℃ et 65℃ ~ 85℃
B/L ±(0.30×TD 0.20)%×Span
alii ±(0.20×TD 0.10)%×Span

Plus-range effectus
±0.075% x Span

Long-terminus stabilitas

Range Code Effectus (Drift)
B/L ±0.2% ×Span / 1 year
alii ±0.1% ×Span / I annos


Virtus Supple Effectus
±0.001%/10V (12～42V DC), insensibilis

Range et mensurae dolor (XG3051T-gauge Pressure)
Range Code Type kPa bar
B Range 0.6~6 6~60 mbar
Span -6~6 -60~60 mbar
C Range 2~40 0.02~0.4
Span -40~40 -0.4~0.4
D Range 2.5~250 0.025~2.5
Span -100~250 -1~2.5
F Range 30~3000 0.3~30
Span -100~3000 -1~30
G Range 0.1~10 MPa 1~100
Span -0.1~10 MPa -1~100
H Range 0.21~21 MPa 2.1~210
Span -0.1~21 MPa -1~210
I Range 0.4~40 MPa 4~400
Span -0.1~40 MPa -1~400
J Range 0.6~60 MPa 6~600
Span -0.1~60 MPa -1~600


Range et Measureme nt dolor (XG3051T- Absoluta Pressure

Range Code Type kPa bar
L Range 2~40 0.02~0.4
Span 0~40 0~0.4
M Range 2.5~250 0.025~2.5
Span 0~250 0~2.5
O Range 30~3000 0.3~30
Span 0~3000 0~30
Item Descriptio
Range limites Accommodari potest ad libitum intra fines superiores et inferiores teli. Commendatur eligere codicem missum cum infimis turndown rationibus ad optimize operationis notas.
Nulla Profecti Nulla et spatium ad aliquem valorem accommodari possunt intra mensurae metiendae in tabula specificata, dummodo: Calibrated Span ≥ Minimum Span.
Adscendens Positio Effectus Ascensus positionis mutationem superficiei diaphragmatis parallelam non dabit egisse. Pro inscensu positionis declinationis super 90° respectu diaphragmatis superficiei: Range C nulla summa exhibet ＜0.25kPa; aliae iugis nulla summa 0.15kPa exhibent. Omnis nulla summa potest corrigi per zephyrum punctum temperatio. Nulla spatium spatium.
Output 2‑wire, 4‑20mA DC. Ad libitum HART communicatio digitalis. Linearibus vel quadrangulis output selectable.
Limites signo output: Imin=3.9mA, Imax=20.5mA
Terrorem Current Maximum terrorem (minimum): 3.7mA
Altum terror (maximum): 21mA
Nullus terror modus (tene) valet current valorem ante culpam habe
Factory default terrorem summus terror modus
Responsio Tempus Amplificat debilitare constantem: 0.1s; Sensorem temporis constantem: 0.1‑1.6s (dependet a ratione range et turndown). Additional adjustable time constant: 0.1‑60s.
Warm‑up Time 15s
Ambiens Temperature 40~85°C
20 ~ 65° C (cum LCD et FKM signantes annulum)
Repono / Transport Temperature 50~85°C
40~85°C (with LCD)
Pressura limites A vacuum usque ad amplissimum spatium.


Limit ONERO:

Range 6 kPa 40 kPa 250 kPa 3 MPa
Code (B) (C/L) (D/M) (F/O)
Overload Limit 0.2 MPa 1 MPa 4 MPa 16 MPa
Range 10 MPa 21 MPa 40 MPa 60 MPa
Code (H) (I) (I) (K)
Overload Limit 20 MPa 50 MPa 50 MPa LXX MPa


Electromagnetic compatibility (EMC)
Vide proximam paginam, EMC Appendix '

Potestas Supple et Load Conditions
Potentia copia voltage est 24V,R ≤ (Us-12V)/Imax k
ubi Imax = XXIII mA
Maxima vis copiae voltage: 42VDC
Digital communication onus range: 230~600Ω

Electrical Connection
M20×1.5 funis glandulae; terminales conductores 0.5~2.5mm suitable idonei sunt.

Processus Connection
Vexillum processum connexionis: NPT 1/2 filum internum. Adaptationes praesto sunt NPT 1/2, G1/2, M20×1.5 filum externum, et KF16 vacuum portum.

Processus Connection Description (Codex I)

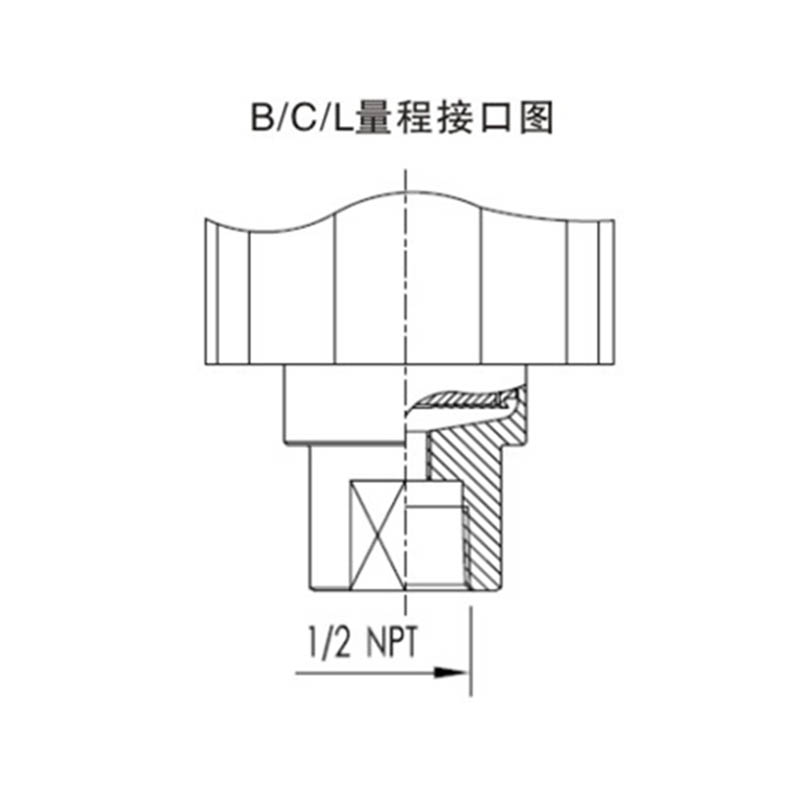

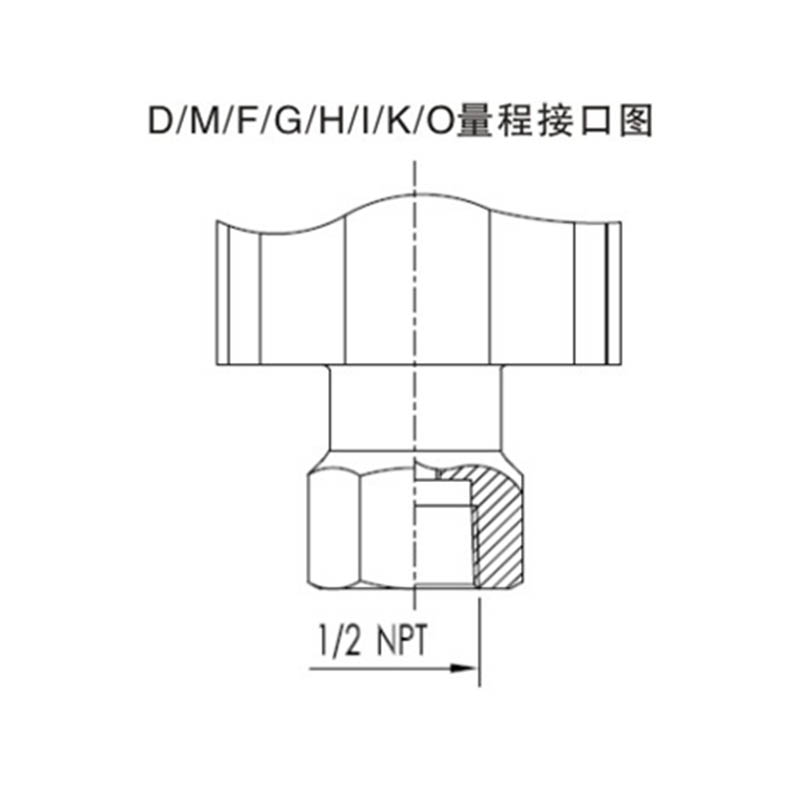

Forma Standard (Codex 1)
100064-Mjut 100054-1-6F2j
Derivative interface Form
100045-Q4KA 100035-1-16L4 100026-Pa9e 100017-x8c5 100008-qbyJ

Exemplar ac Specification Code Tabula

Electio 3051T Pressura Transmitter
1 G Gauge Pressura
A Absoluta Pressure
2 Sagacitas Output
U Basic error ± 0.04% 4‑20mA cum cervo communicationis
B Basic error ± 0.075% 4‑20mA cum cervo communicationis
A Basic error ± 0.05% 4‑20mA cum cervo communicationis
C Basic error ± 0.01% 4‑20mA cum cervo communicationis
N 4‑20mA Analog output
3 Gauge Pressura
B 0‑0.6kPa~6kPa / (0‑60 ~ 600 mmH₂O) / (0‑6 ~ 60mbar)
C 0‑2kPa ~ 40kPa / (0‑200 ~ 4000 mmH₂O) / (0‑20 ~ 400mbar)
D 0‑2.5kPa ~ 250kPa / (0‑0.25 ~ 25 mH₂O) / (0‑25 ~ 2500mbar)
F 0‑30kPa ~ 3MPa / (0‑3 ~ 300 mH₂O) / (0‑0.3 ~ 30bar)
G 0-0.1 MPa ~ 10 MPa (0-1 ~ 100 talea)
H 0-0.21 MPa ~ 21 MPa (0-2.1 ~ 210 bar)
I 0-0.4 MPa ~ 40 MPa (0-4~ 400 talea)
J 0-0.6 MPa ~ 60 MPa (0-6 ~ 600 bar)
L 0-2 kPa~40 kPa (0–200 ~ 4000 mmH₂O / 0-20~ 400 mbar). Absoluta pressura solum
M 0–2.5 kPa ~ 250 kPa (0–25 ~ 2500 mbar). Absoluta pressura solum
N 0–30 kPa ~ 3 MPa (0–0.3 ~ 30 bar). Absoluta pressura solum
4 Diaphragma Material / Implens fluidum
A 316L stainlesssteel/oleum siliconee
B 316L immaculatam ferrum / oleum fluorinatum
C Hastelloy C / silicone oleum
D Hastelloy C / fluorinated oleum
5 Processus Connection
1 1/2" NPT filum internus

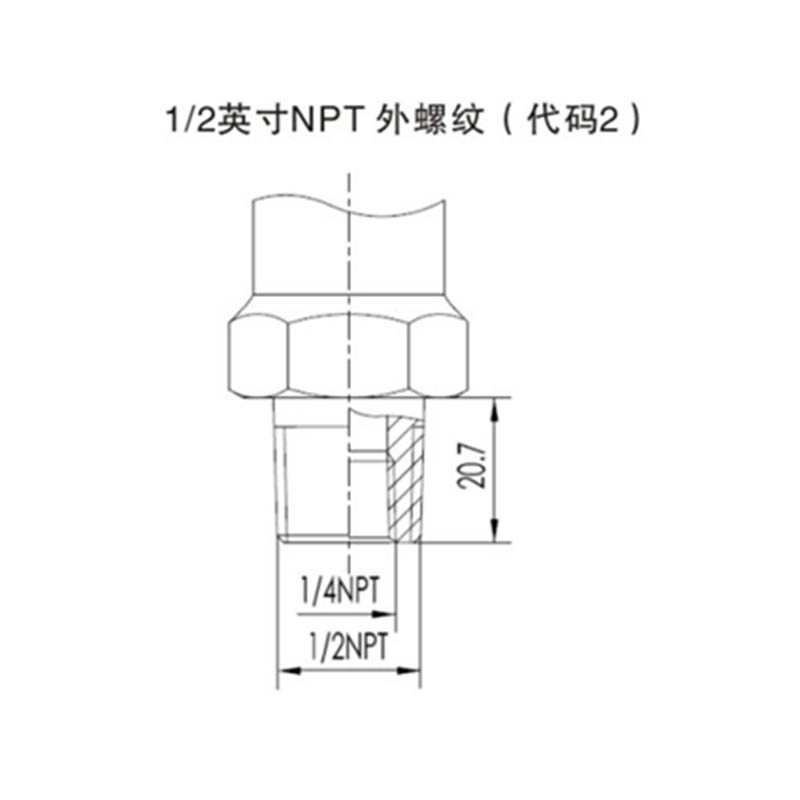

2 1/2" NPT filum externum (cum 1/4" NPT intus)

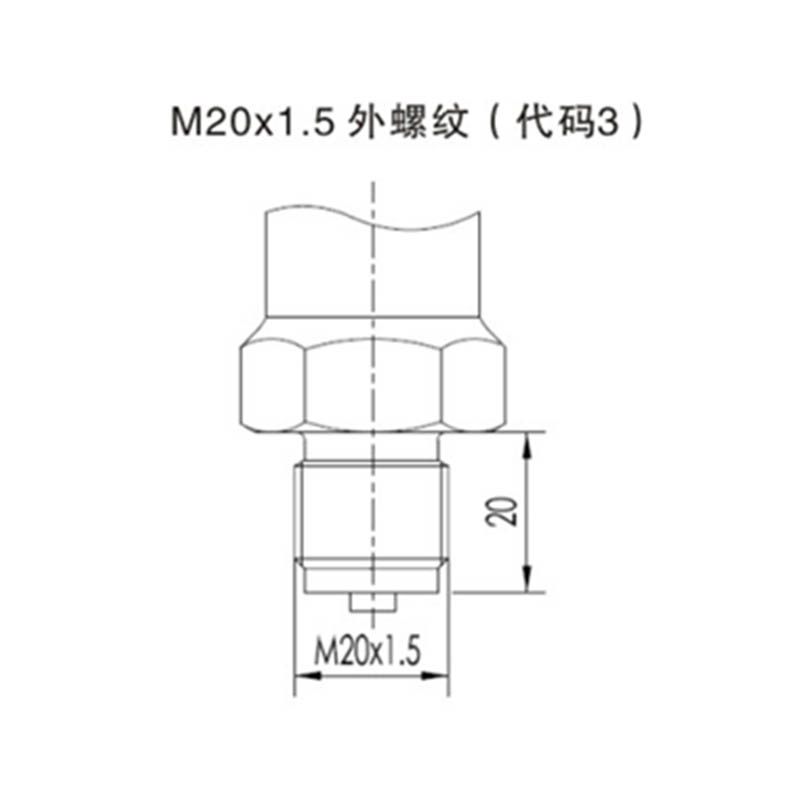

3 M20×1.5 stamina externa

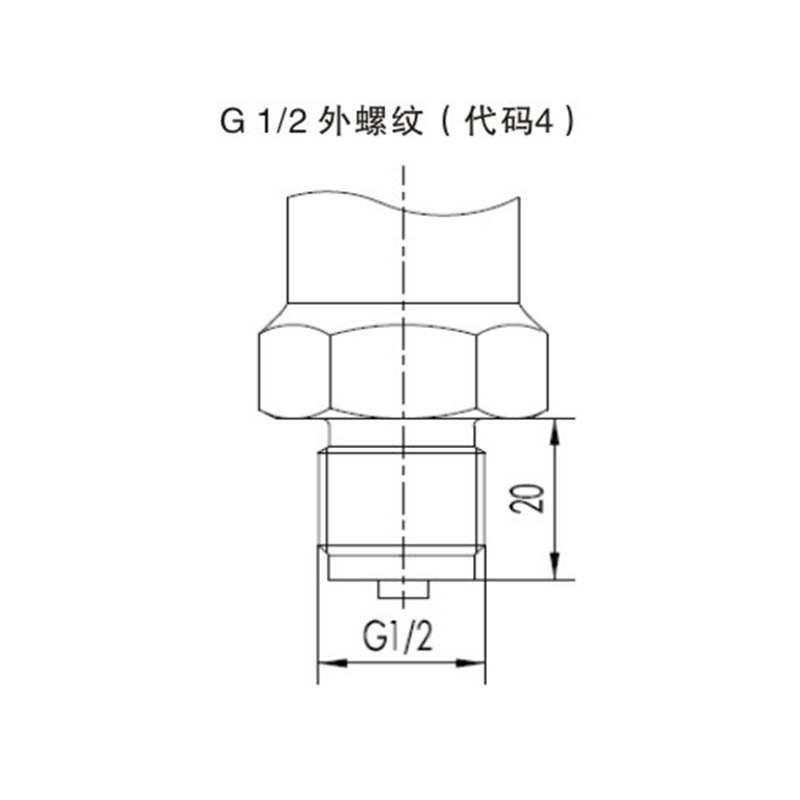

4 G1/2 external stamina

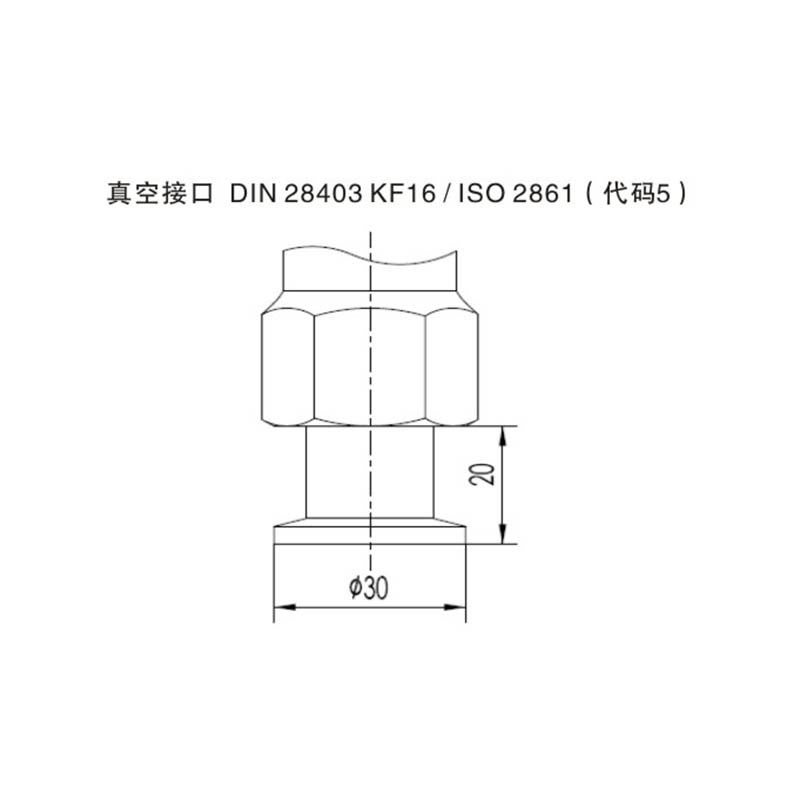

5 Vacuum nexus DIN 28403 KF16/ISO 2861

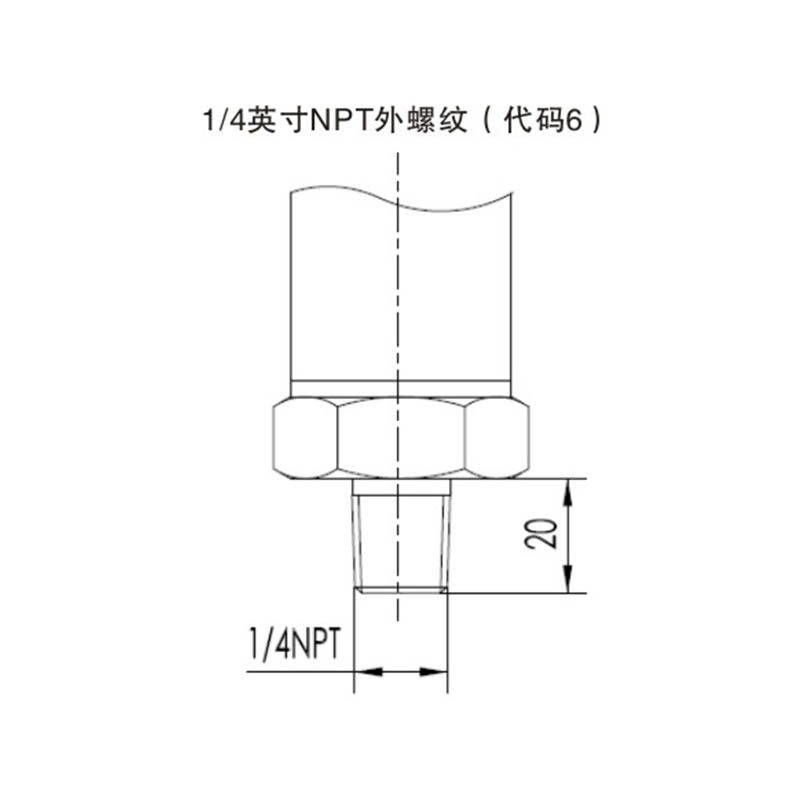

6 1/4" NPT externum filum
6 Specialis functionis
N Nullus
P fulgur praesidium
O Curatio olei libera (pro mensurae oxygenii: oleum impletivum fluorinatum, annulum sigillum FKM, <6 MPa, <60 °C)
7 Adscendens Bracket
N Nullus
1 Diver
2 Galvanized chalybe
8 Ostendere
N Nulla ostentationem
2 LCD cum backlight (-20 ° C)
3 OLED display (40 °C)
9 Explosion‑probatio Treatment
N Vexillum versionis
A Genus salutis intrinsecae, NEPSI
D Flameproof type, NEPSI (exclusa glandulae flammeae funis)
10 Additional Options
D Flameproof cable ingressum fabrica
E Auxit salutem cable ingressum fabrica
V Minimum voltage version
S Plena immaculata ferro habitationi

Nota:
Nota 1: Codices Range cum XG3051 interfaciei respondentes; codicibus eminus correspondentibus versionis absolutae pressuris XG3051T.
Nota 2: Connexum vacuum DIN 28403 KF16 / ISO 2861 solum ad iugis intra 2.5 vectem applicat.

Item Descriptio
Materiae Diaphragma: 316L chalybs immaculata, Hastelloy C
Processus nexus: 316L immaculatam ferro
Implens fluidum: Silicone oleum
Transfusor habitationi: Aluminium mixtura cum epoxy resinae membranae
Praesent sigillum anulum: Flexilis Nitrile (NBR)
Nameplate: 304. immaculata ferro
Pondus 1.6kg (sine LCD, ascendens bracket et nexum processus)
Praesidio Rating claudetur IP67


Electromagnetica compatibilitas Schedule

Nec. Test Item Basic Standard Test Condition Euismod Level
1 Emissio radiata (claustra) GB/T 9254-2008 Table 5 30 MHz~1000 MHz Transi
2 Conducted Emission (DC Power Portus) GB/T 9254-2008 Table 1 0.15 MHz~30 MHz Transi
3 ESD immunitas GB/T 17626.2-2006 4 kv (Contact) / 8 kv (Aer) B
4 RF Electromagnetic Field immunitas GB/T 17626.3-2006 10 V/m (80 MHz~1 GHz) A
5 Potentia Frequency Magnetic Field immunitas GB/T 17626.8-2006 30 A/m A
6 Electrical Fast Transiens / Burst immunitas GB/T 17626.4-2008 2 kv (5/50 ns, 5 kHz); B
7 Surge immunitas GB/T 17626.5-2008 1 kv. B
8 RF Field, Eductus Conducted Disturbance immunitas GB/T 17626.6-2008 3 V (150 kHz~ 80 MHz) A

Nota:
(1) euismod Level A: Normalis effectus intra fines specificationum technicarum in probatione tenetur.
(2) Effectus gradus B: degradatio temporalis vel amissio functionis/peractionis in probatione fieri potest, cum propria recuperatione. Condiciones actuales operativae, memoria et notitia non mutaverunt.
