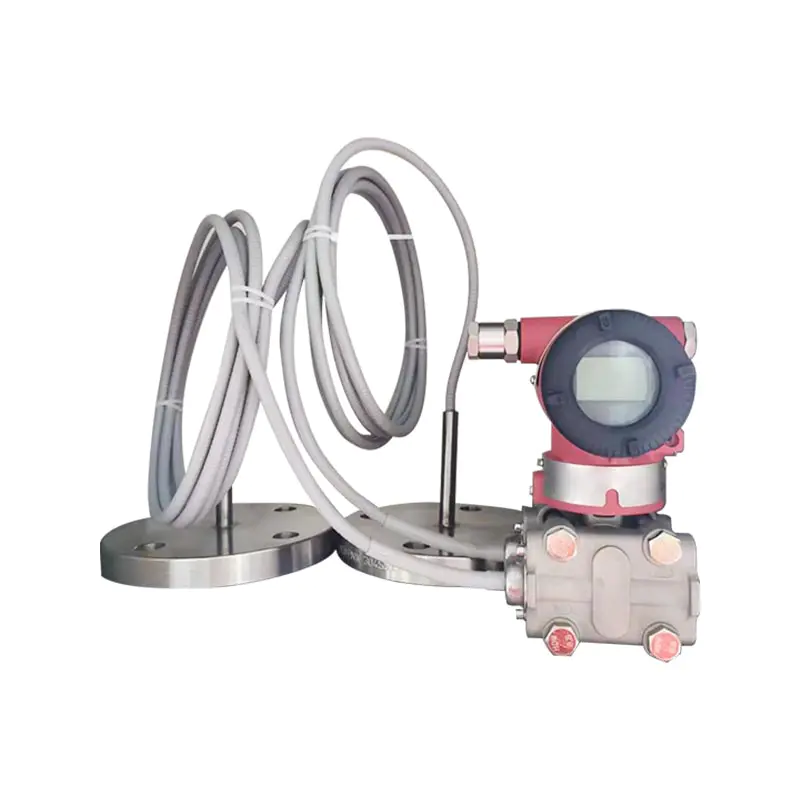

XG3051DP differentialis pressura remota transfusor

Product Introductio:
XG3051DP intelligens pressionis differentialis remotis transmissionis, duplice-flange capillares structuram transmissionis remotam, pressionem differentialem mediarum mensurat, ac liquidum gradum, ratem, densitatem et pressionem differentialem mensurae fluere potest; medium mensuratum a corpore sensori separat, accommodat ad viscositatem altam, crystallizationem facilem, solidificationem facilem, caliditas media, valida media mordax, impeditque obstructionem et corrosionem cistae membranae mensurae.
Duae filum 4-20mA HART protocollum output, sustentans in-situm configurationem HART moderatoris et globuli capitis, migrationem vagandi, debilitationem aptabilem, altam accurationem, et stabilitatem bonam diuturnam; Libitum LCD cum explosione-probationis tutelae. Membrana effici potest ex materiis qualia sunt 316L, Hastelloy, Tantalum, etc. Coniungi potest cum systematibus PLC/DCS et communiter ad mensurandum gradum liquidum et fluxum rate occlusarum piscinarum, vasorum reactionum et machinarum suffocationum.

Lorem amet:
Petrochemical industria: reactionem ollae, piscinae liquidae gradus repositae, deprehensio fluunt
Coal chemica industria: magna liquidi gradus differentialis pressionis in vario processu lacus et turres
Electricity: boiler, systematis differentialis scelerisque pressus, mensurae liquidae gradus
Metallurgia: processus tentationis obterere et vasis obsignati excoquunt
Pharmaceutical: Mensurae liquidae campestris reactionis clausae obterere et fermentationem obterere
Cibus et potus: materia viscosa, liquida planities in praediis obsignatis
Aquae curationes: piscinae aquae chemicae, vas liquidum planum, clausum
Charta faciens: pressio differentialis liquidi gradus in pulpa et viscosa media obterere

Contact Us
PREV：XG3051DP differentialis pressura transfusorDEINDE：XG3051T differentialis pressura / absoluta pressura remotis transfusor
FAQ Processus Connection Instructiones Input Output Responsio Tempus Conditiones generales Electrical Connections Exemplar ac Specification Code Tabula Dimensiones

Q1: Quod est principale propositum XG3051DP dual-flange remota transfusor ad metiendam?
A: Maxime pro mensura differentiali pressura; saepe usus est ad liquidum gradum mensurandum, rate fluens, et densum medium in lacunis clausis. Duplex flange compages solitariae capillaris, apta viscositati altae, crystallizationis faciles, corrosionis et mediae caliditatis fortis, ad vitandum corporis sensoris obstructiones et corrosiones mediae, 4-20mA HART output, et interfacies cum systemate DCS/PLC.
Q2: Quae sunt rationes inaccurate punctum ponatur et calliditate numeralis post duplicem LABIUM institutionem?
A: Drift causari possunt per mutationes caloris environmentalis, compressionem capillarem, scalam et crystallizationem membranam, et moduli occasus migrationis falsae. Post institutionem, migratio punctum in-situm nihili peragi debet; Compressi et parvi inflexionis capillarium radii fugiunt; Cum temperatura operativa signanter mutat, instrumentum debilitare convenienter auget.
Q3: Quomodo eligendi materia diaphragmatis LABIUM?
A: 316L stainless steel is selected for normal working conditions; Instrumenta corrosiva ex Hastelloy mixtura et tantalum cinematographico eligi possunt. Cum ordinem ponatur, medium nomen, temperiem, et pressionem ad faciliorem adaptationem diaphragmatis et capillaribus repletionem fluidi praebent.
Q4: Quid sunt taboos ad installandi fistulas capillares?
A: Secare vel durum capillarium inflexio non permittitur; radij minimi inflexi> 50 mm, et exprimi vel censui non possunt. Tubus capillaris plenus est liquore intus obsignando. Postquam laeditur et effluo, instrumentum directe deficiet et in situ reparari non potest.

Processus connectivity instructiones ad unilaterales transmittuntur sine transmissione flanges

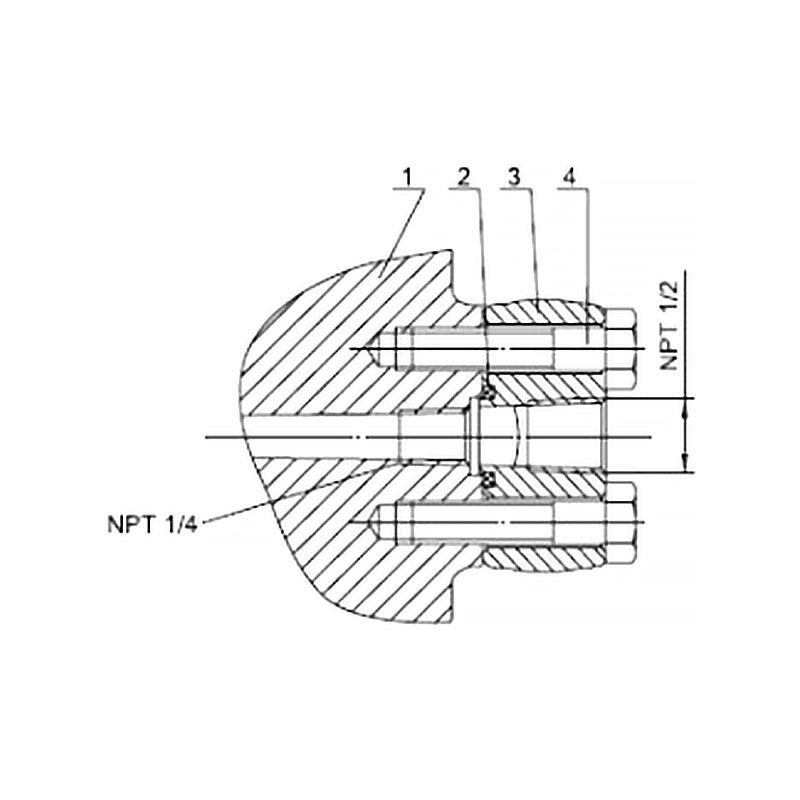

I / II-NPT Steel Elliptical Flange (Code I) 100016 1. Pressura Cubiculum Flange
2. O sigillum anulum
3. NPT 1/2 Elliptical Flange Connection
4. Bolt

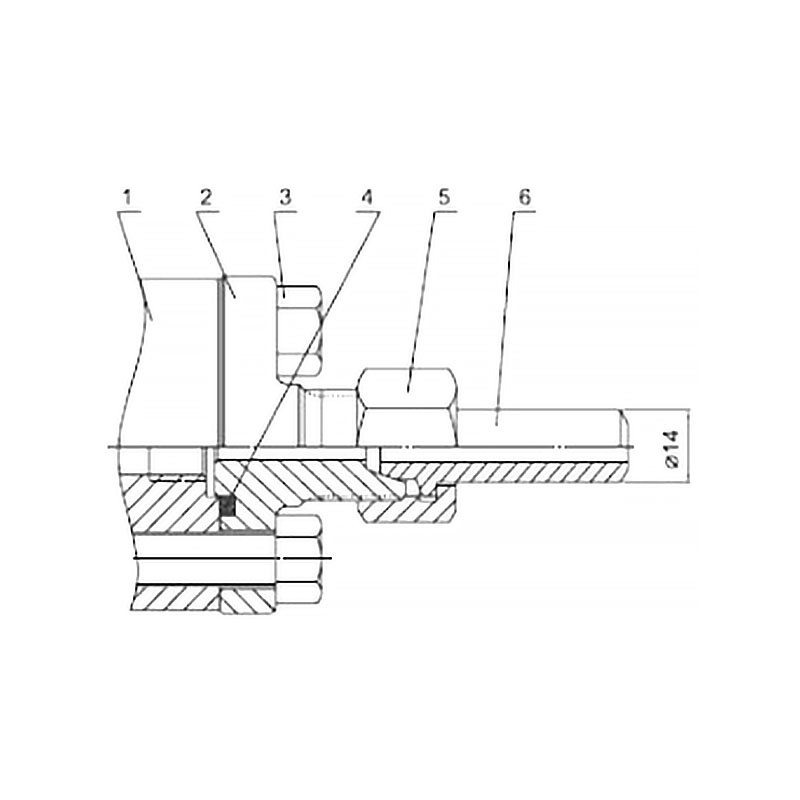

M20x1.5 Steel T-Connector (Code 2) 100007 1. Pressura cubiculum LABIUM
2. M20×1.5 T informibus liciatum masculum aptatum
3. Bolt
4. O anulum
5. M20×1.5 nut
6. Impetus plumbi-in tubo

Mensurae Parameters: Differentialis Pressura, Liquid Level

Mensuratio dolor
Lower Low Ex -100% URL (continue Populus Novifacta)
Superioris limitis Usque ad C% URL (continue adjustable)
Tabula I - Relatio inter Range Code et Range
Range Code Minimum Range Maximum dolor Rated Pressure (Max)
B 1 kPa 6 kPa Aestimavit pressura remota LABIUM
C 4 kPa 40 kPa Aestimavit pressura remota LABIUM
D 25 kPa 250 kPa Aestimavit pressura remota LABIUM
E 200 kPa 2 MPa Aestimavit pressura remota LABIUM
Table 2 Remota Sigillum Flange vs Minimum Range
Level Lange Type Nominal Diameter Minimum Range
Unius Longinquus Sigillum Dual Longinquus Sigillum
Plana Type DN 50/2" 10 kPa 10 kPa
Plana Type DN 80/3" 6 kPa 1 kPa
Plana Type DN 4" 6 kPa 1 kPa
Type inserta DN 50/2" 16 kPa 16 kPa
Type inserta DN 80/2" 6 kPa 1 kPa
Type inserta DN 4" 6 kPa 1 kPa

Minima amplitudo transmissionis remotae maioris pretii esse debet inter minimas ranges in Tabula 1 et in Tabula II.
Spatium opportunum non minor quam minimi ambitus erit. Maxima range transmissionis longinqui minoris pretii erit inter maximam corporis transmissionis extensionem et pressionem plani LABRICAE aestimatae.

Output signum
2-filum, 4-20 mA DC HART output, communicatio digitalis; protocollum HART superponatur signo 4-20 mA DC.
Output signum limites: Imin = 3.9 mA, Imax = 20.5 mA

Terrorem Current (Configurable Mode)
Humilis Terror Modus (minimum) 3.7 mA
Princeps Alarm Mode (Maximum) 21 mA
Nulla Terror Modus (tene) Valorem current valorem tenet antequam culpa
Vexillum Profecti metum Current Princeps Terror Modus


Debilitare constantem componentis ampliantis est 0,1 s; tempus constantem sensorem et remotis sigillis iugis ab 0.2~6 s, secundum extensionem sensorem, longitudinem extensam, et viscositatem fluidi implendi.
Additamentum adjustabile tempus iugis constantibus e 0.1 ~ 60 s.

Transfusor corpus in quovis loco figi potest. Optimae institutionis conditio est ut processus verticalis spiculi LABIUM custodiret. Positio declinationis nullam mutationem emendabilem causabit. Habitatio electronica ad 360° revolvi potest, et cochleae statuta in quovis situ angulari obtineri potest.
LABIUM sigillum remotius cum signis ANSI/DIN coniungit cum langae coniugationis. LABIUM admissurae molli gasket instructae et escendentibus seris et nucibus (seram et nuces libitum usoribus sunt).
Pro duobus transmissionibus sigillum remotis, comitia capillaria et flationes remotae sigillum in ambitu cum eadem ambiente temperie, quantum fieri potest, instituentur.
Radius capillaris minimus inflexus 75 mm. Vehementer arcte prohibetur!

Environmental conditionibus

Ambiens Temperature
Minimum Secundum satietatem fluidi
Maximum 85
Cum LCD et FKM sigillum -20 ~ 65
Repono / Transport Temperature
Minimum Secundum satietatem fluidi
Maximum 85
Relativum Umor 0 ~ 100 %
Repugnantia inpulsa
Acceleratio 50 g
Duratio 11 ms
Vibratio Resistentia 2 g usque ad D Hz
Electromagnetic compatibility (EMC) Vide Tabulam 4 "EMC Appendix" in pagina altera

Processus medium terminum temperatus modus
Medium temperamentum:-30~400°C

Table 3 Relatio de Liquor, Operans Temperature et Minimum Operating Pressura
Imple Liquor Silicone oleum (S) Summus Temp Silicone oleum (H) Ultra-High Temp Silicone oleum (U) Oleum vegetabile (V)
Density @25℃ 960 kg/m³ 980 kg/m³ 1020 kg/m³ 937 kg/m³
Temperature Range operating -30 ~ 200℃ -10 ~ 350℃ -10 ~ 400℃ 0 ~ 250℃
Temperature Operans Impetus dolor (kPa absoluta)
20℃ >10 >10 >10 >25
100℃ >25 >25 >25 >50
150℃ >50 >50 >50 >75
200℃ >75 >75 >75 >100
250℃ >100 >100 >100
350℃ >100 >100
400℃ >100

Nota: Specialis ratio habenda est omnibus valoribus supra temperatus et pressionis range excedentes; per haec occurrit
speciali consilio.

Item Descriptio
Transfusor Corpus Pressura Limit Ex 3.5 kPa pressio absoluta ad pressionem aestimandam. Pressio tutelae 1.5 temporibus maior esse potest quam pressionis aestimatae, simul ad utramque partem transmitter applicata.
Longinquus Rated Pressure ANSI standard: 150psi ~ 600psi
vexillum DIN: PN 1.6MPa~ PN 10MPa
Unidirectional ONERO Limit Pressura lateris humilis est corporis transmissionis aestimatio pressio; summus pressio latus est pressione remota flange aestimavit. Nulla egisse emendabilis fieri potest.
Pondus Uno latere remoti;
DN 50/2": approx. 7~10 kg
DN 80/3": approx. 8 ~ 11 kg
DN 4": approx. 9 ~ 12 kg
Duplex trilineum remotum:
DN 50/2": approx. 10 ~ 16.5 kg
DN 80/3": approx. 12 ~ 18 kg
DN 4»: approx. 14 ~ 21 kg
CREPITUS euismod NEPSI Flameproof Quisque: Ex dⅡC T6
NEPSI Tutus Quisque: Ex iaⅡC T4
Licet operating temperatus -40℃ ~ 65℃

Potestas et Load Conditions
Potentia copia voltage est 24V
R≤(Us-12V) /Imax kQ 2
ubi Imax = XXIII mA
Maxima vis copiae intentione: 42VDC
Minimum potentia copia voltage:12VDC,15VDC(backlight LCD propono)
Digital communicationis onus range: 250~600Q

Item Descriptio
Materia
Capsula mensuræ Steel 316L
Diaphragma Steel 316L, Hastelloy C, Tantalum
Processus Flange Steel 304
Imple Liquor Silicone Oleum, Summus Temp Silicone Oleum, Ultra-High Temp Silicone Oleum, Oleum Vegetabile
signare Ring NBR (Nitrile Butadiene Flexilis), FKM (Fluoro Flexilis), PTFE (Polytetrafluoroethylene)
Transfusor Praesent Aluminium Alloy, aspergine obductis cum epoxy resinae
habitationi Gasket NBR (Nitrile Butadiene Flexilis)
Nameplate Steel 304
Electrical Connection M20×1.5 funis glandulae; terminales idonei 0.5 ~ 2.5 mm conductores
Processus Connection NPT 1/4 et UNF 7/16" fila interna in parte transmissionis depressae. Plana lateris altae pressionis cum signis ANSI vel DIN obsequitur. Inscensio directa praesto est, refer ad Page 42, Pars VII.
Praesent Donec Class IP67

Table 4 Electromagnetic Compatibility
Nec. Test Item Basic Standard Test Condition Euismod Level
1 Radiata Disturbance (claustrum) GB/T 9254-2008 Table 5 30MHz~1000MHz Transi
2 Conducted Disturbance (DC Power Portus) GB/T 9254-2008 Table 1 0.15MHz ~ 30MHz Transi
3 Electrostatic officii causa (ESD) immunitas GB/T 17626.2-2006 4kV (Contact) B
8kV (Air)
4 Radio-Frequency Electromagnetic Field immunitas GB/T 17626.3-2006 10V/m (80MHz ~ 1GHz) A
5 Potentia Frequency Magnetic Field immunitas GB/T 17626.8-2006 30A/m A
6 Electrical Fast Transiens / Burst immunitas GB/T 17626.4-2008 2kV (5/50ns, 5kHz) B
7 Surge immunitas GB/T 17626.5-2008 1kV (Line-ad-Line) B
2kV (Line-ad-humus) (1.2us/50us)
8 Conducted Disturbance immunitas inductus Radio-Frequency Agri GB/T 17626.6-2008 3V (150kHz ~ 80MHz); A

Nota: (1) A euismod Level Description: Per probationem, effectus est normalis intra fines specificationis technicae.
(2) B Descriptio Level euismod: Per probationem, functiones vel effectus ad tempus decrescentes vel evanescant, sed in sua recuperare possunt; ipsa operans condiciones, repono, et data non mutatur.

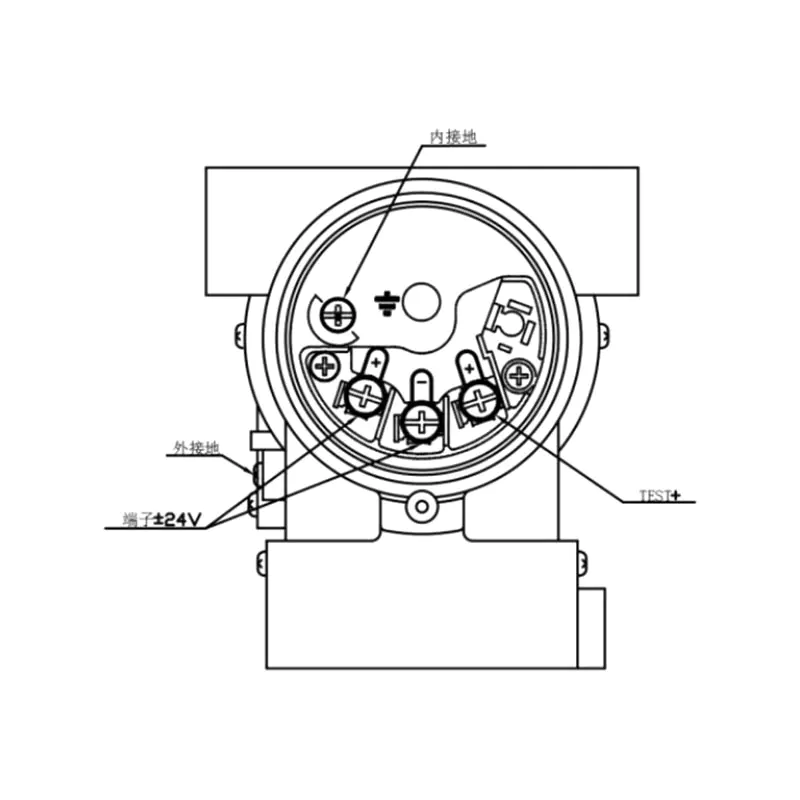

Figure V, Electrical Connection Diagram
100025

Nota: munus interface velox idem est signum terminalis

1 Electio Remoti Sigilli Conventus pro Basic Type Differentialis Pressure Longinquus Transmitter
10 Basic Type Differentialis Pressure Remota Sigilli Conventus
XH- Cum capillaribus, Positive ( )
XL- Cum capillaribus, Negative (-) side
20 Processus Connection Nominal Diameter Type sigillum meum Diaphragma / Sigillum Faciei Material
A DN50 DIN 2501 Typus E DN2526 Steel 316L
B DN50 DIN 2501 Typus E DN2526 Hastelloy C
C DN50 DIN 2501 Typus E DN2526 Tantalum
H DN80 DIN 2501 Typus E DN2526 Steel 316L
I DN80 DIN 2501 Typus E DN2526 Hastelloy C
G DN80 DIN 2501 Typus E DN2526 Tantalum
D DN2"ANSI B 16.5 RF Type ANSI B 16.5 Steel 316L
E DN2"ANSI B 16.5 RF Type ANSI B 16.5 Hastelloy C
F DN2"ANSI B 16.5 RF Type ANSI B 16.5 Tantalum
K DN3"ANSI B 16.5 RF Type ANSI B 16.5 Steel 316L
L DN3"ANSI B 16.5 RF Type ANSI B 16.5 Hastelloy C
M DN3"ANSI B 16.5 RF Type ANSI B 16.5 Tantalum
N DN4"ANSI B 16.5 RF Type ANSI B 16.5 Steel 316L
O DN4"ANSI B 16.5 RF Type ANSI B 16.5 Hastelloy C
P DN4"ANSI B 16.5 RF Type ANSI B 16.5 Tantalum
Q DN100 DIN 2501 Typus E DN2526 Steel 316L
S DN100 DIN 2501 Typus E DN2526 Hastelloy C
T DN100 DIN 2501 Typus E DN2526 Tantalum
30 Rated Pressure Pressura Classis Pressura Latin
1 PN1MPa/4MPa DIN 2501 DIN 2501
2 PN6.4MPa DIN 2501 DIN 2501
3 PN10MPa DIN 2501 DIN 2501
6 150psi ANSI B 16.5 ANSI B 16.5
7 300psi ANSI B 16.5 ANSI B 16.5
8 600psi ANSI B 16.5 ANSI B 16.5 (DN4"ANSI B16.5 exclusis);
40 Connection Type
F Plana Type
H Type insert, Diver 316L, Insertio Longitudo 50mm
I Type insert, Diver 316L, Insertio Longitudo 100mm
G Type insert, Diver 316L, Insertio Longitudo 150mm
L Type insert, Hastelloy C, Insertio Longitudo 50mm
M Type insert, Hastelloy C, Insertio Longitudo 100mm
N Type insert, Hastelloy C, Insertio Longitudo 150mm
50 Imple Liquor Operans Temp. Range
S Silicone oleum -30 ~ 200
H Summus Temperatus Silicone Oleum -10 ~ 350
U Silicone oleum ultra -10 ~ 400
V Vegetabilis oleum 0 ~ 250
F Fluorinated oleum -30 ~ 260
L Ultra humilis-temperatus Reple Liquor -100 ~ 100
F Ultra-High Temperature Reple Liquor 10 ~ DC
60 Capillare Longitudo
1 1 m
2 2 m
3 3 m
4 4 m
5 5 m
6 6 m
7 7 m
8 8 m
9 9 m
10 10 m**
11 11 m
12 12 m
… …
70 Capillaris Pars Feature
N Nullus
P Capillaris cum PVC tutela iacuit
80 Diaphragma faciei forma processus inaruit LABIUM
N Nullus
1 FEP obducta est 316L (temp. ≤ 180 ℃)
2 PFA obducta est 316L (temp. ≤ 260 ℃)
3 PTFE membrana diaphragmatis conglutinata (temp. ≤ 200 ℃)
4 FEP obducta est 316L (temp. ≤ 180 ℃) (inserted type only)
5 PFA obducta est 316L (temp. ≤ 260 ℃) (inserted type only)
6 Vacuum-probationis curatio

II Electio sequelae differentialis Pressure Remota Sigilli Conventus
10 Post conscendit differentialis Pressura Remota Sigilli Conventus
TH- Cum capillaribus, Positive ( )
TL- Cum capillaribus, Negative (-) side
20 Diaphragma / Sigillum Faciei Material
U Steel 316L
V Hastelloy C
W Tantalum
30 Flush Connection
1 Nullus
0 Praesto
40 Imple Liquor Operans Temp. Range
S Silicone oleum -30 ~ 200
H Summus Temperatus Silicone Oleum -10 ~ 350
U Silicone oleum ultra -10 ~ 400
V Vegetabilis oleum 0 ~ 250
F Fluorinated oleum -30 ~ 260
L Ultra humilis-temperatus Reple Liquor -100 ~ 100
F Ultra-High Temperature Reple Liquor 10 ~ DC
50 Capillare Longitudo
1 1 m
2 2 m
3 3 m
4 4 m
5 5 m
6 6 m
7 7 m
8 8 m
9 9 m
10 10 m**
11 11 m
12 12 m
… …
60 Capillaris Pars Feature
N Nullus
P Capillaris cum PVC tutela iacuit
70 Praesent forma diaphragma madefactum
N Nullus
P Vacuum-probationis curatio

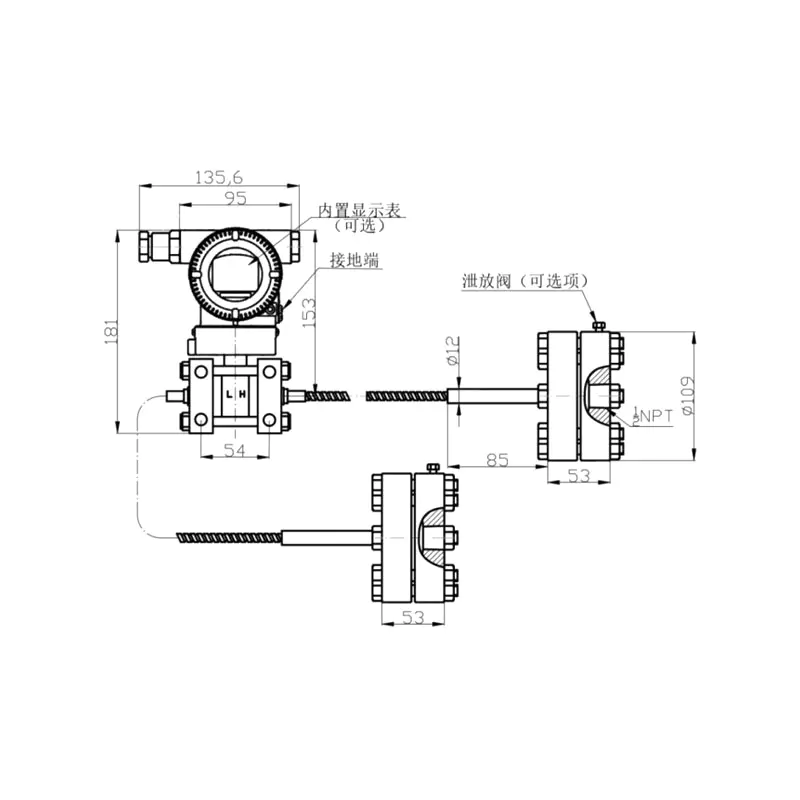

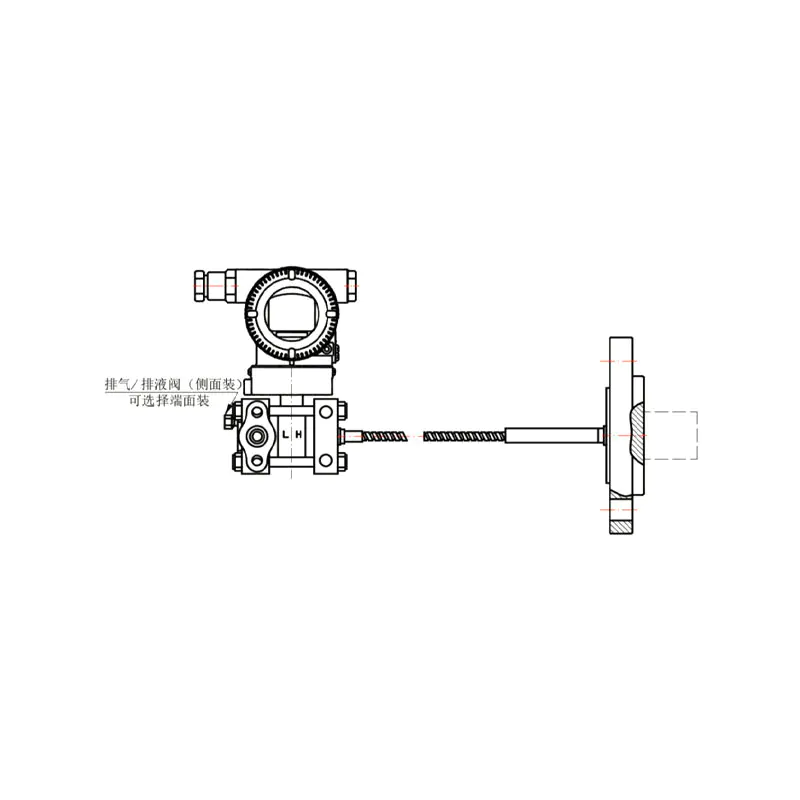

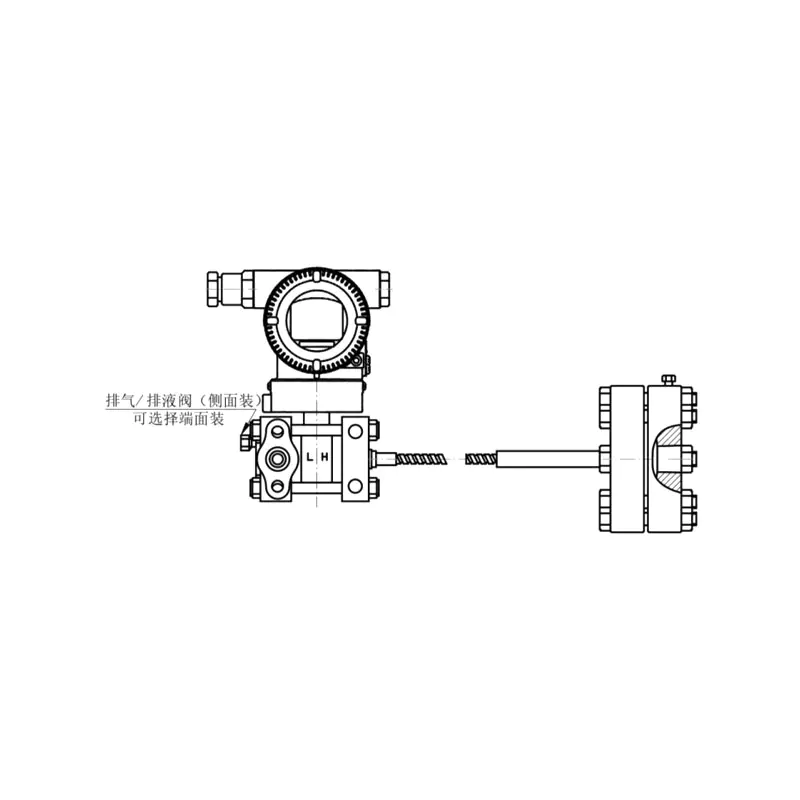

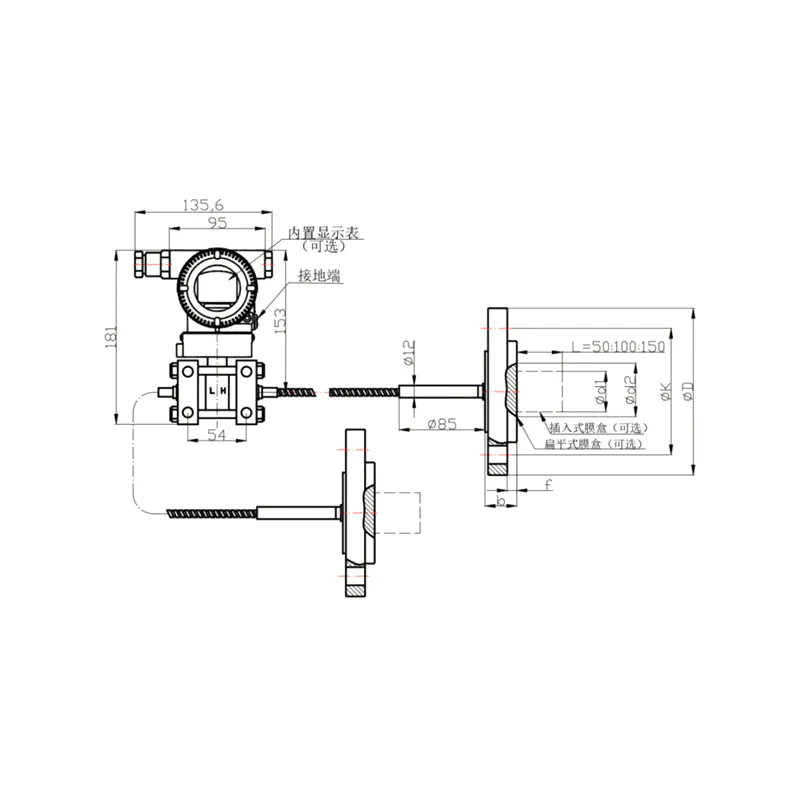

Drawing I: Vulgate Type duplex postesque differentialis Pressura Remota Sigilli Conventus Drawing Drawing II, Vulgate Type una postesque differentialis Pressura Remota Sigilli Conventus Drawing
100061 100052

Nota:
(1) Unius quadratum typum fundamentale differentialis pressionis sigilli remoti remoti coetui institui potest vel in latere alto vel depresso corporis transmissionis.
(2) Institutionem corporis transmissionis pro uno latere vel bipartito pressionis differentialis basic-typo, remotis sigilli coetuum, eadem est ac seriei differentialis pressionis transmissionis XG3051DP.

Mensa 5 Remota Flange structuralis Dimensio Tabula
Nominal Diameter Rated Pressure ΦD ΦK Φd1 Φd2 Φd3 t b Repagula required
Type inserta Plana Type quantitas Thread
DIN 50 (DIN 2526 Type E) (Flange DIN 2501) PN1.6/4MPa 165 125 48.3 57 102 3⁺⁰·⁵ 20 4 M16
PN6.4MPa 185 135 48.3 57 102 3⁺⁰·⁵ 26 4 M20
PN10MPa 195 145 48.3 57 102 3⁺⁰·⁵ 28 4 M20
DN 80 (DIN 2526 Type E) (Flange DIN 2501) PN1.6/4MPa 200 160 76 75 138 3⁺⁰·⁵ 24 8 M16
PN6.4MPa 215 170 76 75 138 3⁺⁰·⁵ 28 8 M20
PN10MPa 230 180 76 75 138 3⁺⁰·⁵ 32 8 M24
DN 2" (ANSI B 16.5 RF Type) 150psi 152.4 120.6 48.3 57 92.1 3⁺⁰·⁵ 17.4 4 M18
300psi 165.1 127 48.3 57 92.1 3⁺⁰·⁵ 20.6 8 M18
600psi 165.1 127 48.3 57 92.1 6.35 31.75 8 M18
DN 3" (ANSI B 16.5 RF Type) 150psi 190.5 152.4 76 75 127 3⁺⁰·⁵ 22.2 4 M16
300psi 209.5 168.3 76 75 127 3⁺⁰·⁵ 27 8 M20
600psi 209.5 168.3 76 75 127 6.35 38.05 8 M20
DN 4" (ANSI B 16.5 RF Type) 150psi 229 191 89 89 157 3⁺⁰·⁵ 30 8 M18
300psi 255 200 89 89 157 3⁺⁰·⁵ 32 8 M18

Nota:Usercanoptionallyequipinsaatonbosannut.

Figura III Figura IV postesque Thread-graves differentialis Pressura Remota Sigilli Conventus
100043 100034

Nota:
(1) Unius stamina differentialis pressionis inclusa, remotis sigilli conventus, institui potest in utraque parte alta vel depressione corporis transmissionis.
(2) Institutionem corporis transmissionis pro uno latere et duplicato filo differentiali pressionis differentialis inclusis sigillis remotis, eadem est ac seriei differentialis pressionis transmissionis XG3051DP.

Related Product

Xinguo Group Co., Ltd.
DE US Xinguo Group Co., Ltd.
Xinguo Group Co, Ltd. est summus tech inceptum cum subsidiariis possidet Anhui Xinguo Instrumentum Co, Ltd, Anhui Xinguo Admisce Co, Ltd, Anhui Xinguo Cable Co, Ltd et Anhui Xinguo Metalla Co, Ltd condita in MCMXCVII, Group sita in urbe Tianchang, Anhui Provinciam - a National Civitatem civilem Anhui. Capitale descripserunt centum milium RMB habet, terram area plus quam 150 mu tegit et aedificium area 60,000 metrorum quadratorum. Societas in praesenti plus quam trecentos operarios habet, inter quos supra 50 personas professionales et technicas comprehendo seniores fabrum, fabrum et fabrum adiutorem.
The Group is a China Custom XG3051DP differentialis pressura remota transfusor Manufacturers and XG3051DP differentialis pressura remota transfusor Supplier, mainly engages in the R&D, production and sales of temperature instruments, pressure instruments, level instruments, flow instruments and digital display instruments. Its product portfolio also encompasses power cables, control cables, compensation cables, computer cables, signal cables, MI heating cables, mineral insulated cables, electric heat tracing tapes, cable trays and accessories, high and low voltage distribution equipment, complete automation control systems, instrument valves, pipeline valves and fittings, glass instruments and laboratory equipment. We also supply platinum-rhodium wires, precision alloys and complete mechanical equipment, while providing supporting processing, manufacturing, sales and technical services. Additionally, we deal in professional instrument materials, alloy materials and precious metals. Our products are widely applied in power, petroleum, chemical, metallurgy, building materials, machinery, food, aerospace, new energy and other industrial sectors, as well as scientific research and education fields.
Anhui Xinguo Alloy Co, Ltd. dedicatum est ad plenam sollicitudinis mixturae materias fabricandas et inservit consilio membri Instrumenti Materiae Germen Sinarum Instrumenti & Imperium Societatis. Eius producta praetoria thermocouplam stannum (K, N, E, J, T genera tegunt), thermocoupla admixtionis enucleata (KX, EX, NX, JX, TX, KCA, KCB, NC, SC), summa resistentia admixtiones calefactionis, admixtionum accuratio resistentia, admixtiones calefactionis, nuclei puri, alloysiae et manganesae. Hi producti late usi sunt in aviatione, petroleo, machinatione chemica, machinatione fabricanda, potentia et industria industriis.
View More
  • 0annus

    Founded in

  • 0+mu

    Operiet area of

  • 0+

    Peritus conductos

  • 0㎡

    Building area

Testimonia
NUNTIA Praebere te cum The
Tardus Enterprise and Industry News
View More
