  • XG3051LT differentialis pressura liquoris gradus transfusor
  • XG3051LT differentialis pressura liquoris gradus transfusor

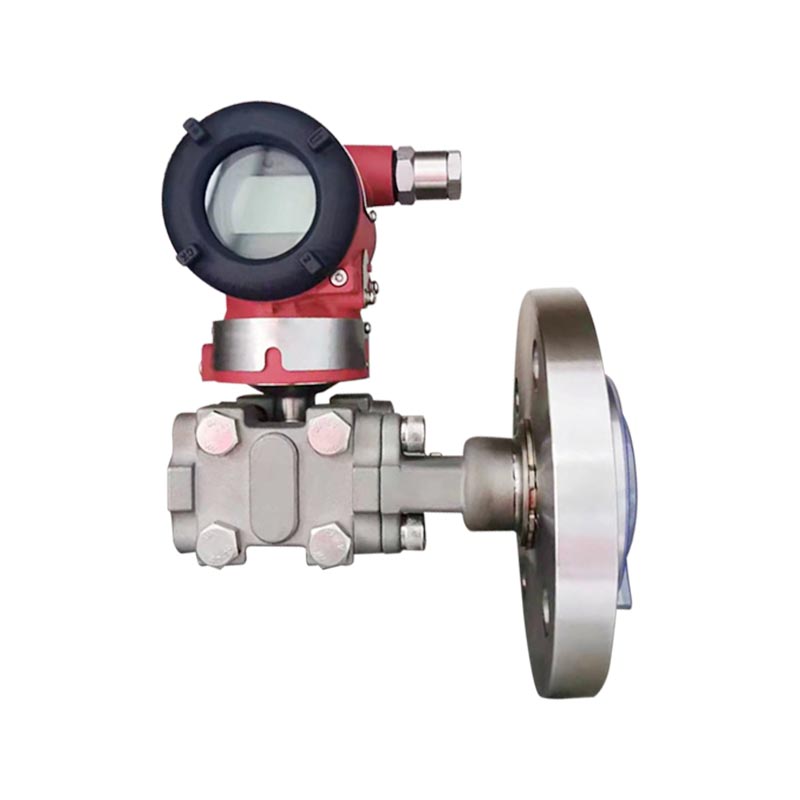

XG3051LT differentialis pressura liquoris gradus transfusor

Product Introductio:
XG3051LT est 3051 series simplicis pressionis differentialis remotis pressionis liquidae transmissionis. Fundatur ex principio sentiendi capacitivae, diaphragma solitudo diaphragma directe tangens medium mensuratum, pressionis statice differentiale generatum a gradu liquido in 4-20mA HART convertens signum digitale output. Solet specialiter quaestionem viscositatis altae, crystallizationis facilem, sedimentationis facilem, et fortem corrosionem medii liquoris gradu mensurae, necessitatem pressionis tibiarum tollendo et venenatum pipelineum vitando.

Industria applicationis:
1. Industria petrochemica: mensurae liquidae gradus in vasis reactionis, piscinas repositiones, materias viscosas, medias facile crystallizabiles, et duo-phases interfaces.
2. Aquarum curatio tutelae environmental: vigilantia liquorum graduum in sentina piscinarum, piscinarum chemicarum, pituitae piscinarum, et instrumentorum solidorum suspensorum.
3. Pharmaceutical industria: liquor gradus reactionis lacus, ingrediens lacus, medicamenta mordax valde, et lacus sanitate gradus.
4. Cibus et potus: materia viscositas alta ut condimenta et syrupi, condi possunt in obterere cum structuras libitum sanitate LABIUM.

Contact Us
PREV：Nullus prior articulumDEINDE：XG3051DP differentialis pressura transfusor
FAQ Processus Connection Instructiones Input Output Responsio Tempus Conditiones generales Electrical Connections Exemplar ac Specification Code Tabula

Q1: Quid interest inter XG3051LT et XG3051DP?
A: XG3051DP communis est pressionis differentialis transfusor, quae ductum pressionis externam requirit; XG3051LT est una flange remota in liquido gradu transmissionis speciei, cum diaphragmate solitario instructa et fistulam pressionis non requirit. Aequum est metiendi liquorem in viscosis, crystallinis, et instrumentis facile adhaerentibus, sed mensurae fluere non aptum.

Q2: Quae est ratio mensurae liquidae parum accuratae et magnae ambiguae?
A: Diaphragma LABIUM materiale cumulum et scalis tegitur; ② Silicone oleum implens experientias excalfacit et pressuras negativas, ducens ad vaporizationem olei siliconis; ③ range erroris occasus migratio; ④ densitas mediae piscinae mutata est. Prioritize inhibendo conditionem laborativam diaphragmatis flaminis, et tunc recalibrare punctum zephyrum et extensionem.

Q3: Quomodo eligere obturaculum-in diaphragmate et in plana LABIUM?
A: Medium est pronum ad sedendum et pendendum in pariete. Elige membranam insertabilem, ne membrana faecis in pariete piscinae contegatur; Medium mundum est et faecis expers, et flangium plana seligi potest.

Q4: Quod media non potest directe adhiberi cum 316L amet?
A: Sub conditionibus medii chloridi ion alti, acidi et alcali validi, et corrosio valida, 316L corrodet et requirit lectio Hastelloy C, Monel, vel schedae tantalum pellicularum; Temperatus operandi condiciones egent confirmationem caliditatis resistentiae gradus impletionis fluidi.

Humilis-PRESSUS Latus Processus Connection Instructiones

I / II-NPT Steel Elliptical Flange (Code I) 100016 1. Pressura Cubiculum Flange
2. O sigillum anulum
3. NPT 1/2 Elliptical Flange Connection
4. Bolt
M20x1.5 Steel T-Connector (Code 2) 100007 1. Pressura cubiculum LABIUM
2. M20×1.5 T informibus liciatum masculum aptatum
3. Bolt
4. O anulum
5. M20×1.5 nut
6. Impetus plumbi-in tubo

Mensurae Parameters: Differentialis Pressura, Liquid Level

Mensuratio dolor
Lower Low Ex -100% URL (continue Populus Novifacta)
Superioris limitis Usque ad C% URL (continue adjustable)
Tabula I - Relatio inter Range Code et Range
Range Code Minimum Range Maximum dolor Rated Pressure (Max)
B 1 kPa 6 kPa Rated Pressura de Level Flange
C 4 kPa 40 kPa
D 25 kPa 250 kPa
E 200 kPa 2 MPa
Mensam II Rated Pressura de Level Flange
Level Lange Type Nominal Diameter Minimum Range
Unius Longinquus Sigillum Dual Longinquus Sigillum
Plana Type DN 50/2" 10 kPa 10 kPa
Plana Type DN 80/3" 6 kPa 1 kPa
Plana Type DN 4" 6 kPa 1 kPa
Type inserta DN 50/2" 16 kPa 16 kPa
Type inserta DN 80/2" 6 kPa 1 kPa
Type inserta DN 4" 6 kPa 1 kPa

Minimum spatium pressionis differentialis transmissionis gradus maior erit valor minimorum palmorum in Tabula 1 et in Tabula 2. Spatium adaequatum non minorem quam hoc spatium minimum erit.
Maximum spatium transmissionis campi minoris pretii erit inter maximum corpus transfusoris et pressionem plani LABIUM aestimatum.

Output signum
2-filum, 4-20 mA DC HART output, communicatio digitalis; protocollum HART superponatur signo 4-20 mA DC.
Output signum limites: Imin = 3.9 mA, Imax = 20.5 mA

Terrorem Current (Configurable Mode)
Humilis Terror Modus (minimum) 3.7 mA
Princeps Alarm Mode (Maximum) 21 mA
Nulla Terror Modus (tene) Valorem current valorem tenet antequam culpa
Vexillum Profecti metum Current Princeps Terror Modus


Constans debilitans amplificationis componentis est 0.1 s. Tempus constante iugis sensoris et plani ab 0,2 ad 2 s, secundum spatium sensorem, ratio turndown, longitudinis tubi capillaris, et viscositas fluidi saturati.
Additional adjustable tempus constant: 0.1 ~ 60 s.

Plana transfusor LABIUM directe escendere potest quovis loco.
Optimam institutionem conditio est ut axem processus verticalis LABIUM custodiant. Omnis declinationis positionalis declinatio emendabilem nulla trabea efficiet. electronici habitationem ad 360° revolvi possunt, et cochleae pone quovis loco eam obtinere possunt.

Environmental conditionibus

Ambiens Temperature
Minimum Secundum satietatem fluidi
Maximum 85 °C
Cum loci ostentatione et signacula FKM 20 ~ 65 °C
Repono / Lorem Temperature
Minimum Secundum satietatem fluidi
Maximum 85 °C
Relativum Umor 0 ~ 100 %
Repugnantia inpulsa
Acceleratio 50 g
Duratio 11 ms
Vibratio Resistentia 2 g usque ad D Hz
EMC (Electromagnetic Compatibility) Vide Tabula III "EMC Appendix"

Processus medium terminum temperatus modus
Medium temperamentum:-30~180°C

Medium Temperature Limit 30 ~ 180 °C
Transfusor Corpus Pressura limites Ex 3.5 kPa pressio absoluta usque ad pressionem aestimavit. Tutela pressio potest 1.5 temporibus pressionis aestimatae, ad utramque partem transmittentis simul applicatae.
Level Flange Rated Pressura
ANSI Standard 150 psi~ 600 psi
DIN Standard PN 1.6 MPa ~ PN 10 MPa
Una postesque ONERO Limit Humilis pressura latus: aestimavit pressionem transfusoris corporis; Summus pressura latus: aestimavit pressionem campester LABIUM. Emendabilior nulla egisse contingat.
Pondus DN 50/2": approx. 7~10 kg
DN 80/3": approx. 8 ~ 11 kg
DN 4": approx. 9 ~ 12 kg
Praesidium explosio
NEPSI Flameproof Approbatio Ex dⅡC T6
NEPSI per se Tutus Approbatio Ex iaⅡC T4
Licet Operating Temperature 40 °C ~ 65 °C

Potestas Supple et Load Conditions
Supple intentione 24 V
Formula onus R ≤ (Us − 12 V)/Imax kΩ ubi Imax = 23 mA
Maximilianus. Supple intentione 42 VDC
Min. Supple intentione 12 VDC; 15 VDC (pro backlit LCD propono)
Digital Communication Load Range 230 ~ 600 Ω
Materiae
Capsula mensuræ 316L Steel
Diaphragma 316L Steel, Hastelloy C, Tantalum, FEP, PFA, PTFE coating
Processus Flange 304
Imple Liquor Oleum silicone, oleum vegetabile
Gasket Flexilis nitrilis (NBR), Fluoroelastomer (FKM), PTFE
Transfusor Praesent Aluminium stannum cum epoxy superficies
habitationi Sigillum Flexilis nitrile (NBR)
Nameplate 304
Electrical Connection M20×1.5 funis glandulae. Terminationes aptae conductoribus 0.5~ 2.5 mm²
Processus Connection Pressura lateris transmissionis: UNF 7/16" interna thread. Level flange in latere alto presso obtemperat ANSI vel DIN signis. Recta inscensio in promptu, refer ad dimensionem tractus.
Praesidio Rating claudetur IP67

Table 3 EMC Appendix
Nec. Test Item Basic Standard Test Condition Euismod Level
1 Emissio radiata (claustra) GB/T 9254-2008 Table 5 30 MHz~M MHz Transi
2 Conducted Emission (DC Power Portus) GB/T 9254-2008 Table 1 0.15 MHz ~ 30 MHz Transi
3 Electrostatic officii causa (ESD) immunitas GB/T 17626.2-2006 4 kv (Contact) 8 kv (Air) B
4 Procedens RF Electromagnetic Field immunitas GB/T 17626.3-2006 10 V/m (80 MHz ~ 1 GHz) A
5 Potentia Frequency Magnetic Field immunitas GB/T 17626.8-2006 30 A/m A
6 Electrical Fast Transiens / Burst immunitas GB/T 17626.4-2008 2 kv (5/50 ns, 5 kHz); B
7 Surge immunitas GB/T 17626.5-2008 1 kv (Line-ad-Line) 2 kv (Line-ad-Terram) (1.2 us/50) ; B
8 Conducted Disturbance immunitas adductus RF Agri GB/T 17626.6-2008 3 V (150 kHz ~ 80 MHz); A

Notae:
(1) Effectus gradus A: Per probationem, effectus normales manet intra fines specificationum technicarum.
(2) Gradu B: Per probationem, functionem vel effectum ad tempus degradari vel amitti potest, sed automatice recuperare potest. Status operativus actualis, repositus et alia data immutata manent.

Dimensiones

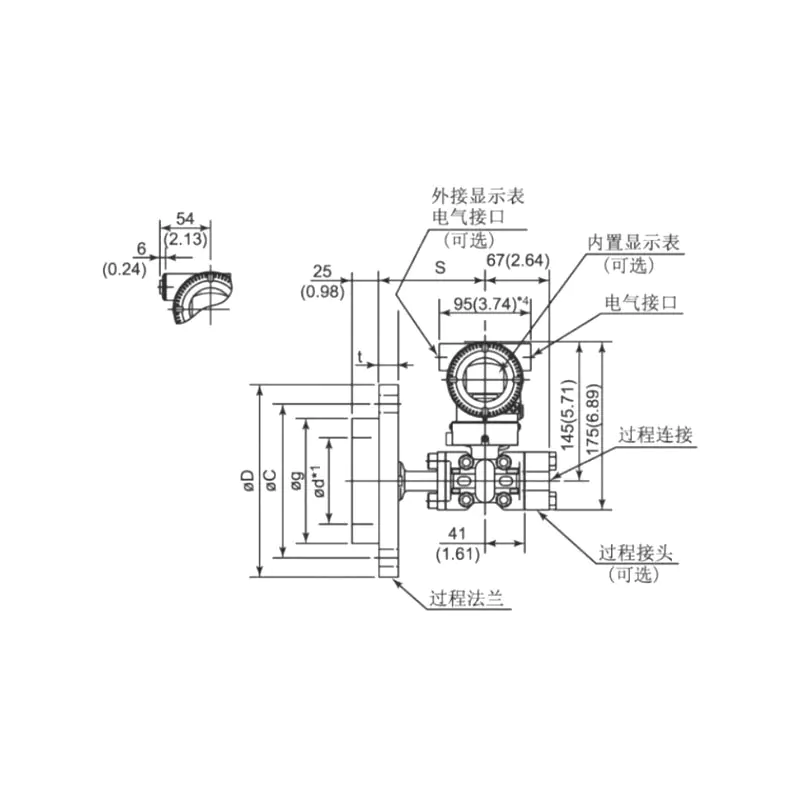

Flat Flange Flat Flange

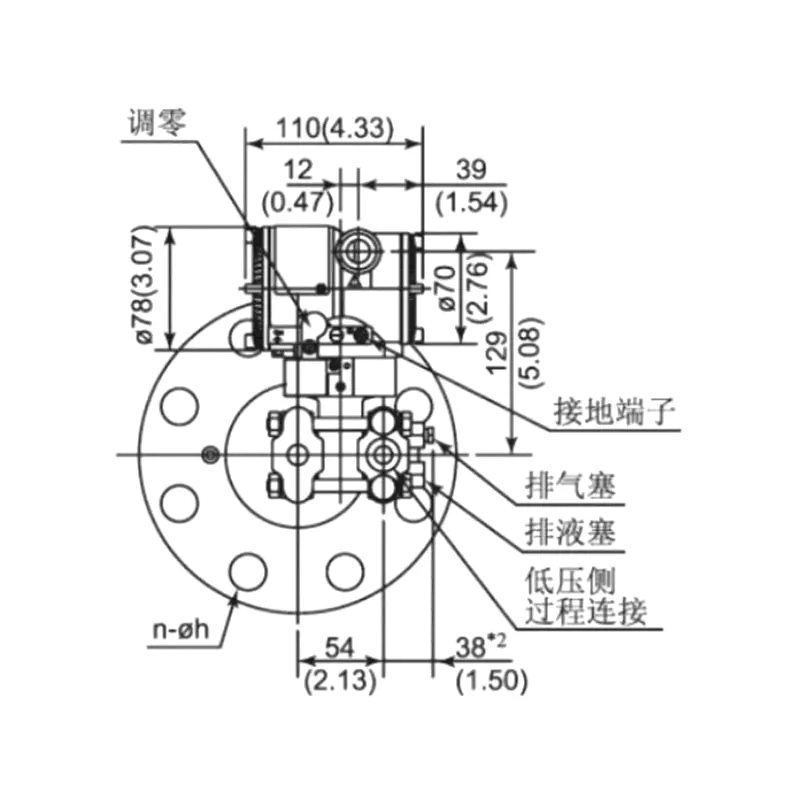

100011 100002

Table 4 Level Flange Dimensional Drawing
Nominal Diameter Rated Pressure ΦD ΦC Φd1 * I (Insert Type) Φg t Repagula
Qty Thread
DIN 50 (DIN 2526 Type E) (Flange DIN 2501) PN1.6/4MPa 165 125 48.3 102 20 4 M16
PN 6.4MPa 180 135 48.3 102 26 4 M20
PN 10MPa 195 145 48.3 102 28 4 M20
DN 80 (DIN 2526 Type E) (Flange DIN 2501) PN1.6/4MPa 200 160 76 138 24 8 M16
PN 6.4MPa 215 170 76 138 28 8 M20
PN 10MPa 230 180 76 138 32 8 M24
DN 2" (ANSI B 16.5 RF Type) 150psi 152.4 120.6 48.3 92.1 17.4 4 M18
300psi 165.1 127 48.3 92.1 20.6 8 M18
600psi 165.1 127 48.3 92.1 31.75 8 M18
DN 3" (ANSI B 16.5 RF Type) 150psi 190.5 152.4 76 127 22.2 4 M16
300psi 209.5 168.3 76 127 27 8 M20
600psi 209.5 168.3 76 127 38.05 8 M20
DN 4" (ANSI B 16.5 RF Type) 150psi 229 191 89 157 30 8 M18
300psi 255 200 89 157 32 8 M18

Nota: Users possunt bene installare seras et nuces.

Figure V, Electrical Connection Diagram
100025

Nota: munus interface velox idem est signum terminalis

XG3051 Differentialis Pressure Level Transmitter Flange Part Electio Code
1 Liquid Conventus signati
LT LABIUM planum, tubus capillaris nullus, latus
2 Range
2 0-100Pa ~ 1kPa (0-10 ~ 100 mmH₂O) / (0-1 ~ 10mbar)
3 0-200Pa ~ 6kPa (0-20 ~ 600 mmH₂O) / (0-2 ~ 60mbar)
4 0-400Pa ~ 40kPa (0-40 ~ 4000 mmH₂O) / (0-20 ~ 400mbar)
5 0–2.5kPa ~ 250kPa (0–0.25 ~ 25 mH₂O) / (0-25 ~ 2500mbar)
6 0-30kPa ~ 3MPa (0-2 ~ 200 mH₂O) / (0-0.3 ~ 30bar)
7 0-140kPa ~ 14MPa (0-3~ 300 mH₂O) / (0-1.4 ~ 140bar)
3 Processus Connection Nominal Diameter Type sigillum Diaphragma / Sigillum Faciei Material
A DN50 DIN 2501 DIN2501 Typus E DN2526 316L Steel
B DN50 DIN 2501 DIN2502 Typus E DN2526 Hastelloy C
C DN50 DIN 2501 DIN2503 Typus E DN2526 Tantalum
H DN80 DIN 2501 DIN2504 Typus E DN2526 316L Steel
I DN80 DIN 2501 DIN2505 Typus E DN2526 Hastelloy C
G DN80 DIN 2501 DIN2506 Typus E DN2526 Tantalum
D DN2"ANSI B 16.5 ANSI B 16.5 RF Type ANSI B 16.5 316L Steel
E DN2"ANSI B 16.5 ANSI B 16.6 RF Type ANSI B 16.5 Hastelloy C
F DN2"ANSI B 16.5 ANSI B 16.7 RF Type ANSI B 16.5 Tantalum
K DN3"ANSI B 16.5 ANSI B 16.8 RF Type ANSI B 16.5 316L Steel
L DN3"ANSI B 16.5 ANSI B 16.9 RF Type ANSI B 16.5 Hastelloy C
M DN3"ANSI B 16.5 ANSI B 16.10 RF Type ANSI B 16.5 Tantalum
N DN4"ANSI B 16.5 ANSI B 16.11 RF Type ANSI B 16.5 316L Steel
O DN4"ANSI B 16.5 ANSI B 16.12 RF Type ANSI B 16.5 Hastelloy C
P DN4"ANSI B 16.5 ANSI B 16.13 RF Type ANSI B 16.5 Tantalum
Z Special Customization
4 Rated Pressura / Pressura Classis Pressura Latin
1 PN 1MPa/4MPa DIN 2501
2 PN 6.4MPa DIN 2501
3 PN 10MPa DIN 2501
6 150psi ANSI B 16.5
7 300psi ANSI B 16.5
8 600psi ANSI B 16.5 (Exclusa DN4"ANSI B 16.5)
5 Connection Type
F Plana Type
H Insert Type, 316L Steel Longitudo 50mm insertio
I Insert Type, 316L Steel Insertio longitudo 100mm
G Insert Type, 316L Steel Longitudo 150mm insertio
L Type inserta, Hastelloy C Longitudo 50mm insertio
M Type inserta, Hastelloy C Insertio longitudo 100mm
N Type inserta, Hastelloy C Longitudo 150mm insertio
Z Special Customization
6 Liquor implens Temperature Range
W Humilis temperatus oleum silicone 65 ~ 145°C
S Silicone ambiens oleum, temperatus 30 ~ CC°C
H Summus temperatus oleum silicone −10 ~ 350°C
U Silicone oleum ultra summus temperatus 0 ~ 415°C
V Vegetabilis oleum 0 ~ 250°C
F Fluorinated oleum 30 ~ 260°C
7 Madefactum LABIUM Diaphragma Face Configurationis
N Nullus
1 316L obducta cum FEP (Fluorinated Ethylene Propylene), Temp ≤180°C
2 316L obducta cum PFA (Perfluoroalkoxy), Temp ≤260°C
3 Diaphragma laminae cum PTFE cinematographico (Polytetrafluoroethylene cinematographico) [2], Temp ≤200°C.
4 316L obducta cum FEP (Fluorinated Ethylene Propylene), Temp ≤180°C (Insert type only)
5 316L obducta cum PFA (Perfluoroalkoxy), Temp ≤260°C (Insert type only)
6 Aurum patella 316L
7 Ruby-patella 316L
8 Anti- vacuum curatio

Related Product
