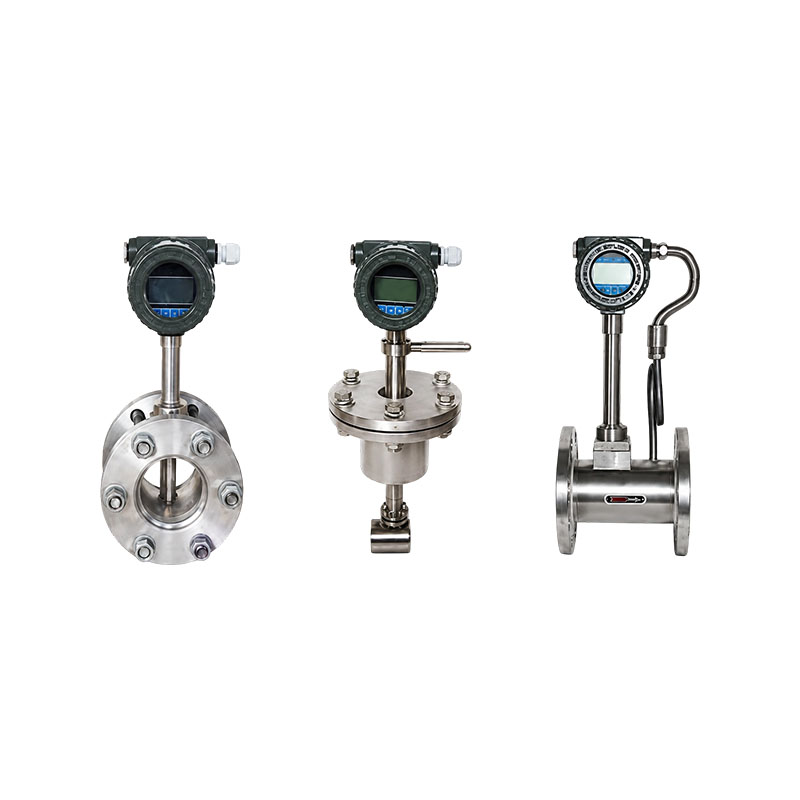

series XG-LUGB vortex intelligentis

Series XG-LUGB fluxus vorticis est novum genus fluens enucleatum secundum principium Karman vortice. Vortex fluens aptus est ad mensurandum ratem fluere molem, et volumen fluere rate vaporis superheati, vaporis saturati, aeris compressi, gasorum communis, aquarum et liquorum mordax humilium.

Product Features:
1. Minimum pressura detrimentum, humilis pretia laboris, et significatio magis salutaris industriae.
2. Simplex structura, nullae partes mobiles, nullae vestis et lacrimae, nulla necessaria ad mechanicam sustentationem.
3. Mensuratio amplitudinis lata est usque ad 10:1 (pro casibus specialibus extendi potest).
4. Adoptatio humili potentiae CPU processus centralis unitatis et LCD, cum humili potentiae consilio et industria consummationis humilis, dividitur in genus localem validum (altilium per 2 annos durare potest) et genus transmissionis machinae potentissimae remotae, necnon formas transmissionis externae magnae remotae, stabili et certa effectione.
5. Ambitus valde integer est, technicis modo provectis, neque calliditate neque auto-excitatione caret. parametros ostendit ut temperiem, pressuram, instanti fluere rate, cumulativum fluere rate, densitatem et frequentiam in situ. Compensatio intentionis stabilizationis applicari potest ad medium probatum.
6. Cum occultam conjunctionem consiliorum ac tesserarum tabularum administrationem adhibens, efficaciter impedit ne alienum curatores instrumenti modificatione et instrumenti parametri facile in situ ponantur.
7. Instrumentum cum output pulsus digitalis designatur et etiam duo filum 4-20mA current output habet. HART Cum protocollo. RS485 communicationis instrumenti instructus.
8. Munus repositionis notitia reali specifica efficit ut notitia interna nullo in casu amittatur.
9. Piezoelectric cristallina detectio utens, summam fidem habet et operari potest intra -20~ 280 ° C teli.
10. LABIUM TABULAE typum habet, DN25-300; LABIUM insertionis genus, DN300-2000.
11. Explosio-probationis rating: Exd lI BT4.
12. Praesidium planum: IP65.

Core puncta venditionis:
1. Simplex et solida structura: Nullae partes intus movendae aut attritae sunt, cum longa servitutis vita et humilis sustentatio inposuit.
2. Amplis: vapores, vapores et liquores metiri potest, magna cum magna ratione et capacitate metiendi rates fluere tam altos quam infimos.
3. Firma accuratio et aptabilitas multiplicibus instrumentis: Instrumentum unum metiri potest liquores, vapores, et vaporem saturatum/superheatum, magna mobilitate.
4. Intelligentes signum output: Locorum LCDs instantaneae et cumulativae rates fluunt; Sustinet 4-20mA, pulsus RS485‑Modbus, commodius coniungi cum systemate superiori PLC.

Industria applicationis:
Scelerisque calefactio industriam: boiler vapor, scelerisque pipeline vapor metering, calefactio compositionis.
2. Industria petrochemical: vigilantia processus fluunt vaporum et varia media liquida.
3. Cibus et industria pharmaceutica: aer compressus, processus vapor, et aqua productio imperium fluunt.
4. Publicae utilitates municipales: Mensuratio energiae publicae fontes sicut aeris compressi, gasi et aquae circulatio.

Contact Us
PREV：XG-JF Series Metal Float Flow MeterDEINDE：XG-LDE Intelligent Electromagnetic Flow Meter
FAQ Euismod Specifications

Q1: Quae media vorticula mensurare potest?
A: Metiri potest humores, vapores, vapores saturatos, et vapores superheatos. Instrumenta metiri non possunt, in quibus magnam vim solidorum particularum et viscositatem altam ad scalas proclives sunt, quae vestigium facile laedunt et mensurae afficiunt.

Q2: Quid est cur magnae fluctuationis in fluxu lectionis vorticis fluvialis?
A: Communes rationes sunt humilis pipeline fluens rate, magna vibratio pipeline, fluvialis et amni insufficientes sectiones fistularum rectarum, et praesentia frequentium bullarum in medio. Prioritizare prospicere sufficiens ante et posticum sectiones fistulae rectae, fontes vibrationis vitantes ut soleatus et valvulae, et condiciones operantes meliores.

Q3: Quae sunt requisita ad inaugurandi fistulam rectam sectionem in voragine fluens?
A: Ut accurationem mensurae curet, sectio recta fistula cum diametro 15-20 temporum plerumque flumine requiritur, et sectio recta fistula cum diametro 5-10 temporum amni requiritur. Conantur abesse a turbatione partium, ut curvationes, valvulae, et corpora quam maxime sentinant; aliter potest causare deviationem mensurae.

Q4: Quomodo eligat inter voragines fluxum metrorum et fluxum electromagneticum?
A: Vortex fluens pro metiendis vaporibus, gas, et liquidis non conductivis; electromagneticorum fluminum electae sunt ad liquores conductivorum metiendas, uti purgamentorum, acidorum, alcali, et lutorum instrumentorum, secundum rationem medii metiendi.

Exemplar DN (mm) Fluxus dolor (m³/h) Sagacitas
Liquid Gas Vapor
XG-LUGB-25 25 1.0-12 8.8-124 7-124 1.0
1.5
XG-LUGB-32 32 1.5-20 15-200 12-200
XG-LUGB-40 40 2.0-26 23-300 18-300
XG-LUGB-50 50 3-56 35-450 28-450
XG-LUGB-65 65 4.8-96 63-820 50-820
XG-LUGB-80 80 7.2-145 90-1200 75-1200
XG-LUGB-100 100 11-224 142-1950 120-1950
XG-LUGB-125 125 18-352 220-3000 175-3000
XG-LUGB-150 150 26-512 320-4400 260-4400
XG-LUGB-200 200 45-920 565-800 440-7800
XG-LUGB-250 250 70.4-1200 850-12400 720-12400
XG-LUGB-300 300 100-2020 1250-17500 1020-17500
Type insertio (velocitas influunt ad punctum centrum insertio)
XG-LUGB-300 300 127-1650 1810-13500 1260-13500
XG-LUGB-400 400 226-2950 3250-23800 2250-23800
XG-LUGB-D 500 353-4600 5560-37800 3500-37800
XG-LUGB-600 600 510-6620 7320-54600 5100-54600
XG-LUGB-800 800 910-11800 13200-96700 9100-96700
XG-LUGB-1000 1000 1450-18500 20100-151600 14500-151600
XG-LUGB-1200 1200 2050-26650 27500-209000 20500-209000
XG-LUGB-1500 1500 3200-40300 45500-335000 32000-335000
XG-LUGB-2000 2000 5600-71400 80200-608600 56000-608600

Material habitationi: Steel, Carbon Steel
Nominalis Pressurae: Sensores Latin-type: 1.0 MPa ad 4.0 MPa; Summus pressura-genus sensoriis: 6.3 MPa ad XLII MPa (specialis ordo)

Flow Meter Electio Table

XG-LUGB Dolor Vortex Flow Meter
Nominal Diameter -XXX L significat DN50
Medium metiri 1 Liquid
2 Gas
3 Vapor
Structura Type 2 Plena-Rore Wafer flanged Type
3 Simple Insertio Type
4 Ball-Valvae insertio Type
5 Princeps Pressura Type
6 Submersible Type
7 Corrosio-Probatio Type
Signum output Type 0 Output (default)
1 4 - 20 mA
2 Pulsus
3 HART
4 RS485
Compensation Modus 0 Nulla Compensation
1 Temperature Compensation Only
2 Pressura Compensation Tantum
3 Temperature & Pressura Compensation
Temperature T1 Low Temp. (T ≤ 80 °C)
T2 Princeps Temp. (T ≥ 80 °C)
Pressure P1 Normalis Pressura
P2 Princeps Pressura
Operans Opera 1 Normal Environment
2 FRAGOR-Probatur Environment
Potestas Supple 1 Internum Pugna (non output)
2 Pugna Externi 24 V Dual Supple
3 24 VDC Tantum
Influunt dolor -XXX Exempli gratia: 1000 significat fluxum maximum 1000 m³/h
