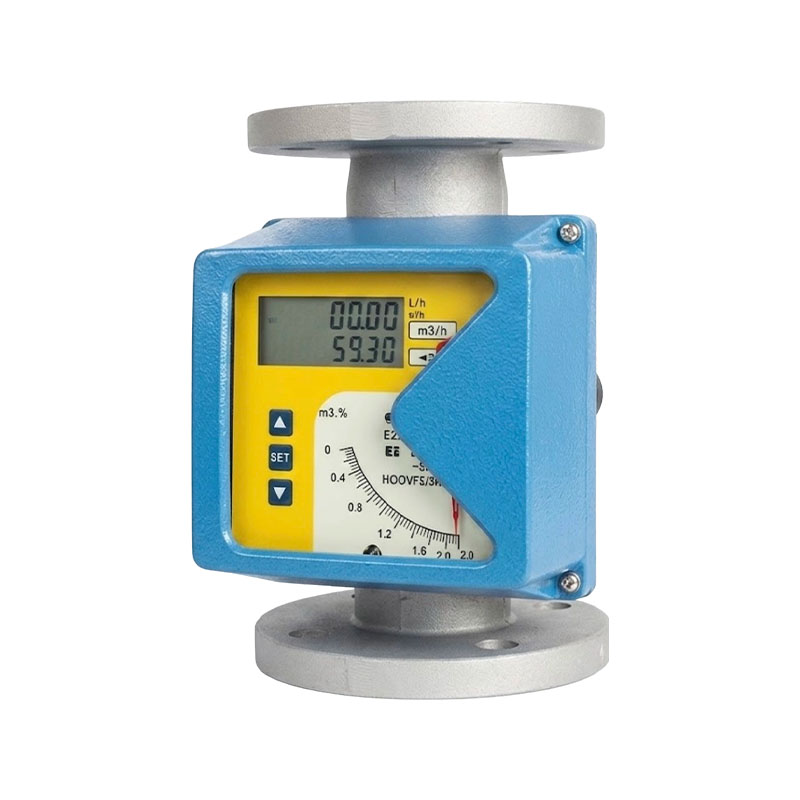

XG-JF Series Metal Float Flow Meter

Series XG-JF Metallum Float Flow Meter est area variabilis instrumenti mensurae. Habet proprietates mediocres, magnae deprehensionis ambitus, et facilitatis usus. Adhiberi potest metiendi rate fluxus liquorum, vaporum et vaporum, praesertim ad metiendam ratem fluxum mediae velocitatis et low-fluentiae.

Product Features:
1. Float fluunt metra, utrumque in-situm propono et intelligentes genera transmissionis remotas habent. Ratio transmissionis longinqua intelligentes assumit summus perficientur computatrum astulae, multae notae outputes, et notitia repono provectus, cum notitia recuperationis et tergum ut securitatis notitiae in tuto ponatur.
2. Secundum varias mensurae tubi structuras, series tubus metallicus XG-JF fluitantis fluitantis genera in 50, 51, 52, 53 dividitur. Aliae mensurae tubi formae seligi possunt secundum diversitatem usoris requisita, quae ulteriorem sustentationem et purgationem meliorat.
3. Requisita ad sectiones fistulae rectae non sunt altae, cum latiore ratione fluxus 10: et mensurae mensurae 1-2000001/h pro aqua (20° C); Inanis (20 ° C, 0.1013MPa) 0.03-4000m3/h
4. Axis singularis indicatio sensitiva, capacitas coitus magneticae non-contactus.
5. Optiones optiones includunt duas lineas systematis, altilium et AC potentia copia.
6. Apta caliditas, pressura alta, et media valde corrosiva.
7. Multi- moduli calibrationis munus habent; accurate: 1.0% F.S., 1.5% F.S.

Core puncta venditionis:
1. Maximum temperamentum et pressionis alta resistentia: Tubus metallicus structuram altas medias temperaturas et pressiones laborantes sustinere potest, condicionibus laborantibus duris accommodare et per vitreas supernatat reparari non potest.
2. Valida aptabilitas: capacitas metiendi vapores et liquores, medium praebens parvam quantitatem immunditiarum continentem, vibrationi repugnantem, ac duris ambitus industriae in situ aptas.
3. Intuitive in-site ostentationem: Nulla potentia copia requiritur ut directe legere rate fluere in situs, et quaedam exempla venire cum remotis transmissionibus output, librans in-situm spectandi ac remotis signo acquisitionis.
4. Simplex et certa sustentatio: simplex structura, paucae partes mobiles, humiles certe defectus, institutionem facilem, ac humilem sustentationem in ulteriore scaena constant.

Industria applicationis:
1. Industria petrochemical: Metire vigilantiam fluxum variorum processuum fluidorum, menstruarum et gasorum.
2. Curatio aquae et tutelae environmentalis: Fluunt mensurae purgamentorum, aqua purificata et dosis chemicae.
3. Metallurgicum chalybum: Fluunt detectio aquae frigidae, gasi processus, media auxiliaria.
4. Energy et electricitas: Mensuratio rates fluxus vaporum aquatici, aeris compressi, et varia media auxilia in plantis potentiae..

Contact Us
PREV：XG-CSL Intelligent Ultrasonic Flu MeterDEINDE：series XG-LUGB vortex intelligentis
FAQ Euismod Specifications

Q1: Vtrum metallum supernatat mensura media fluens fluens parvas immunditias continens?
A: Metiri potest liquida et gasi media, quae parvas quantitates immunditiarum particularum continent, sed non apta est viscositate, magna-particula, et medias valde scandentes; Impuditates immodicae facile innatat capiunt, ut mensuras inaccuratas efficiant. Commendatur prae- filtationem facere in medio.

Q2: Vtrum metallo natat fluens metrum copiam ad ostentationem rate fluens requirit?
A: Indicator fundamentalis in-site vim copiam non requirit et directe legere rate fluxum in situ; Exempla cum 4-20mA remota transmissione et terrore output functiones externam potestatem copiam requirent ut significationibus output ratio moderandi.

Q3: Quae sunt mandataria requiruntur ad installandum a metallo natantis flowmeter?
A: Perpendiculariter institui debet, et medium instrumentum ab imo ad summum fluit. Ad vibrationem validam vitandam, sectiones rectas fistularum ante et retro teneant aptas, neque ea transversaliter vel inverso utantur; secus, accurate mensurae directe afficit.

Q4: Quomodo eligere inter metalla natat flowmeter et tubus vitreus innatat flowmeter?
A: Metallum superat praeferuntur caliditas, alta pressura, et tremor conditiones; Tubulae vitreae viles sumptus et bonam visibilitatem habent, sed angustias et temperaturas resistentias habent, fragiles sunt, nec aptae sunt ad flammabiles, explosivae, altae pressurae, e condiciones operantes durae.

Electio Guide: XG-JF- A- B - C - D - E

Fistulam structurae mensuræ (A) Materia madefacta (b) Pipe Size (C) Additional Structure (D)
0 ab imo, de summo R0 0Cr18Ni12Mo2Ti RP PTFE DN15, DN150
DN25, DN200
DN50
DN80
DN100 		Nullus
1 In ab imo, progreditur a summo R1 321 Ti: Titanium Alloy Titanium Alloy T Jacket
2 In transversae ab imo, horizontaliter a summo R2 302 Z Damped
3R A dextro, a sinistro R4 304 G Princeps Temp.
3L a sinistro, a dextro RL 316K Y Princeps Pressura
Type Code indicator (E)
M1 Locus Testimonium - Quadratum habitationem, monstratorem mechanica fluxum instantaneum ostendens
M2 Quadratus habitationem, mechanica monstratorem ostendens in instanti fluxum LCD ostendens in instanti / cumulativo fluunt
M3 Circum habitationem, multi-munus indicator
(Nemo) M1 / M4 indicibus tantum
A 85-265 VAC 50 Hz copia, 4-20 mA output, backlight optional, Nullam terror
B Pugna-powered, nullum signum output, nullum backlight, nullum terrorem — M2 / M4 only
C 24 VDC duo-filum supplementum, 4-20 mA output, nullum backlight
D 24 VDC tres / quattuor copia filum, 4-20 mA output, backlight optional
(Nemo) Normalis, non explosio-probatio
i Tutus (Ex ia) — M2 / M4 only
d Flameproof (Ex d), circum habitationem — M4 only
(Nemo) Nulla metus vel pulsus output
K1 Superior modus terrorem vel unum alveum pulsus output
K2 Inferior terminus terror vel unum alveo pulsus output
K3 Superior & inferior-terminus metus vel duos alveo pulsus output
(Nemo) Sine backlight
L Cum backlight
H Cervus protocol
M ModBus protocol


Fluid Temperature: Standard Type: -80 ad 200°C; PTFE: 0 ad 85°C; Summus Temperature Type: major CD ° C *
Pressura Rating: Standard Type: DN15 ad DN50: 4.0 MPa; DN80 ad DN200: 1.6 MPa; Specialis Type: DN15 ad DN50:25 MPa; DN80 ad DN200: 16 MPa; Type Jacketed: 1.6 MPa
Medium viscositas: DN15 < 5 mPa·s (F15.1–F15.3); DN15 <30 mPa·s (F15.4–F15.8); DN25 π <250 mPa·s; DN50–150 <300 mPa·s
