XG-LUX Intelligent Swirl Flow Meter Manufacturers
Home / Product / Fluere metris / XG-LUX Intelligent Swirl Flow Meter
  • XG-LUX Intelligent Swirl Flow Meter
  • XG-LUX Intelligent Swirl Flow Meter

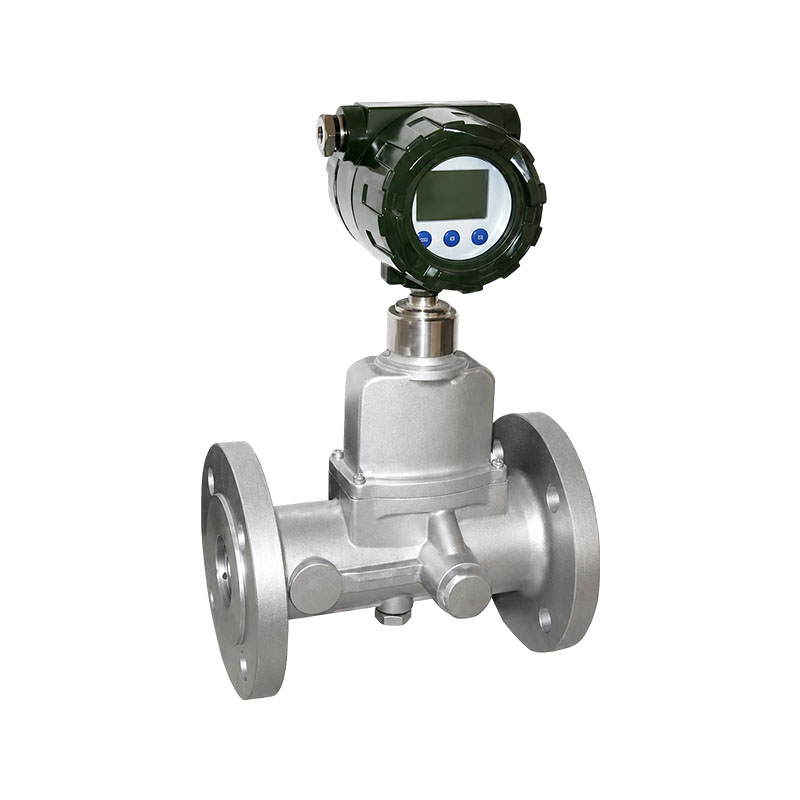

XG-LUX Intelligent Swirl Flow Meter

XG-LUX Argutus Swirl Fluxus Meter est novum genus instrumenti mensurae evolutionis gasi evolutae et pervestigata a societate nostra ad gradum domesticum provectum. Est optimum instrumentum gasi mensurae in industriis sicut petroleum, chemica, potentia et metallurgia.

Product scelerisque Points:
1. Nullae partes mobiles mechanicae, non facile corro- dationes, stabiles et certae, longae vitae servientes, longae operationis sine speciali sustentatione.
2. Testa praesto est ferro et aluminio mixturae utriusque incorruptae.
3. Inaedificata pressura, temperatura et sensoriis refluentia; princeps salutis effectus; compages compacta; externam speciem
Pulchra; Potest directe metiri liquidum pressuram, temperiem et ratem fluere, ac sponte indagare in tempore reali
Compensatio et com- pressio facta correctionis.
4. Adoptatione provectus processui computatrum chippis, integrationem, mediocrem, parvam molem, bonae operationis habet, et altiorem functionem validam habet. Consummatio virtutis microform ambitum assumit, cum humilitatis altiore potentia consummatio. Possibile est per altilium internam (3.6VDC) vel potentia externa (24VDC).
5. Usus singularis notae technologiae eliquandi, technologiae dualis detectio, et technologiae processus in ambitu technologiae efficaciter emendare valent deprehensionis significationibus et abolere tremorem pipeline et impedimentum.
Invasio significationum pressionis causatur ambigua.
6. Munus tutelae tesserae multi-gradi assumens ad efficaciter impedire modificationem moduli.
7. Adsumptio amplae screen LCD, potest directe ostendere fluxum voluminis rate sub condiciones operantes, volubilis rate fluens sub normarum conditionibus, summa copia, necnon fluidi pressionis, temperationis, aliorumque parametri.
8. Cum provectarum notitiarum technologiarum technologiam, historica notitia unum annum condere potest quin data in potestate outages amittat.
9. Converter potest output pulsuum frequentiae, signa analogorum 4-20mA, et interfaciem RS485 habet. Protinus cum microcomputer coniungi potest et spatium transmissionis usque ad 1.2Km habet.
10. Accurate planities fluens fluens est 1.0% F. S. et 1.5% F.S.
11. Caput fluens gyrari potest 360 gradus, institutionem faciens ac uti simplici et opportuno.
12. Metire os diametri;  DN20, DN25 DN32,  DN50， DN80 DN100、DN150、 DN200。

Commoda product:
1. Dura et valida, minimam reparationem requirunt
Nullae intus rotationis partes sunt, quae non exstinguuntur aut haerent. Non sunt faciles erumpere post longum tempus usus, et plerumque non est cura de sustentatione post institutionem.
2. Mensura accurata, quae metiatur tam magnas quam parvas rates metiendis
Metiri potest tam magnas quam parvas negotiationes cum summa diligentia, et non timet impedimentum vibrationis in-site. Mensurae eventus certi sunt.
3. venit cum "parvum computatrum" pro usu faciles
Ipso facto emendare effectus temperatus et pressus, directe fluunt ostentationis, et quoque coniungi potest cum metris lectionibus, systematibus computatris, et etiam cum batteriis adhiberi, sine necessitate virtutis evellendi.

Maiores applicationes:
1. Gas metering: Calculare usus gasorum naturalis quantum in locis consumitur, ut domos, officinas et stationes pipelines.
2. Gas industrialis metering: aerem compressum, nitrogenium, vaporem, etc. in officinis adhibentur ad phthisin monitoris gasi et impensas.
3. Mensuratio humorum viscositatis humilis: Usus pro praeciso fluxu mensurationis in pipeline translatione productorum olei, aquae, liquorum chemicorum, etc.

Contact Us
PREV：XG-LDE Intelligent Electromagnetic Flow MeterDEINDE：XGUHZ-50C series magneticae float gradu metri
FAQ Euismod Specifications

Q1: Quid hoc potest mensurari flos?
Mensurari potest vapores, vapores, et quosdam humores viscositatis humilis, ut gas naturale, aerem compressum, nitrogenium, producta oleum, aquam, etc.

Q2: An mensurae accurate?
Magna praecisio, plerumque intra ± 1.0% ad 1.5%, et sponte emendare potest ad effectus temperatus et pressus. In usu practico mensura certissima est.

Q3: Difficile est ponere et uti?
Nihil molestus. Nullae intus partes mobiles sunt, ut non exstinguatur aut haereat. Plerumque conservatio liberorum diu post institutionem adhiberi potest.

Q4: Lectio metri remotior potest fieri?
Can. Sustinet 4-20mA, RS485, aliisque outputibus; ad systemata computatrum vel DCS vigilantia remota coniungi potest, et localiter cum batteries sine egente potentiae ostendi potest.

Nominal Diameter DN (mm) Type Fluxus dolor (m³/h) Opus Pressura (MPa) Sagaciter Classis Dicta
20 1.2 – 15 1.6
2.5
4
6.3
10
16 		1
1.5 		≤ 2.5 MPa: Aluminium Alloy (L)
≥ 4.0 MPa: Steel (G)
Error ≤ 1/3 de errore fundamentalis modus
25 2.5 - 30
32 4.5 - 60
50 Typus A 10 - 150
Typus B 6 - 75
80 Typus A 28 – 400
Typus B 18 – 200
100 Typus A 50 – 800
Typus B 40 – 600
150 Typus A 150 – 2250 1.6
2.5
4
Typus B 100 – 1200
200 360 – 3600

Notae:
1. Accuracy indicat accurationem systematis post temperatus et pressionis compensatio.
2. Typus A et Type B distinguunt iugis diversae in eadem nominali diametro.
3. Ambiens temperatus: −30~60 °C; Medium siccus: 20~ 80 °C; Pressura atmosphaerica: 86~ 106 kPa; Relativa humiditas: 5~ 95%.

Flow Meter Electio Table

XG-LUX' Smart Swirl flow Meter
Magnitudo Code -XXX 100 = DN100
Compensation Methodo N Nulla tortor vel pressura ultricies
Y Cum temperatus et pressura ultricies
Signum Output 1 Duo-Wire 4-20 mA Pulsus
2 Tria-Wire 4-20 mA Pulsus
3 RS485 Communication
Sagaciter Classis 1 1
2 1.5
Pressura Rating 1 1.6 MPa
2 2.5 MPa
3 4.0 MPa
4 6.3 MPa
Potestas Supple 0 Internum 3.6 V Pugna
1 DC 24 V
habitationi Material G Diver
L Aluminium Alloy
Influunt dolor -XXX Exempli gratia: 200 indicat maximum fluxum respondentem quantitatis 200 m²/h
