XG-LX series cuneum flowmeter Manufacturers
Home / Product / Fluere metris / XG-LX series cuneum flowmeter
  • XG-LX series cuneum flowmeter
  • XG-LX series cuneum flowmeter

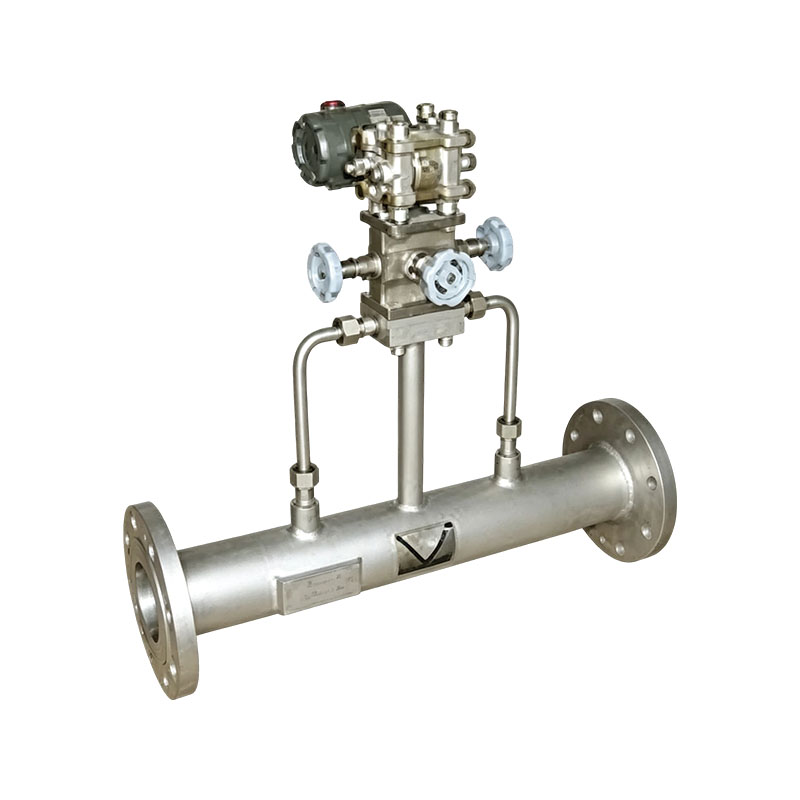

XG-LX series cuneum flowmeter

Cuneum systematis XG-LX fluxum metri nostri societatis novissimae generationis differentialis instrumenti systematis fluxus est. Mensuratio- nem requisitis plurimorum humorum, incluso liquoribus, vaporibus, et vaporibus mundis, occurrit. Maxime convenit ad humores metiendos, qui difficiles sunt metiri metra cum fluxu maiorum, ut pulpa, slurry, oleum slurry, cibus oleum, oleum residua, bitumen carbonum, aliique viscositas humorum et suspensionum, quae crystallizationi et sordibus prona sunt. Ideo systemata fluens cuneata in modum umoris viscositatis, humilium Reynoldorum instrumentorum numerorum in campis, sicut petroleum, chemica, potentia et industria levis metiuntur.

Product Features:
1. Usus partium "V" formatarum influentiarum stagnantium areas tollere et impedimenta in systemate impedire potest.
2. Reynolds numerus amplis applicationes habet, et etiam apud Reynoldum numerum quingenta, adhuc quadratam relationem inter pressionem differentialem et rate fluunt servat.
3. Facile instituere, uti, conservare.
4. Mensurae altae accurate, incerto calibrationis fluxus expansae: ± 0.5%~± 0.2% (calibratio aquae vel calibrationis oleum).
5. Diu terminus stabilitatis bonum est, ab utentibus laudatur ut instrumenti vacui deficientis.
6. Unum tempus split-type metri; repositoque cuneo (medio) ampliare potest latitudinem.
7. genera diversa:
Normalis typus: Intra ambitum 1,10, error nonlinearis fluxus coefficientis est ≤±1%.
Princeps effectus typus: Dilatatio calibrationis fluxus dubitationem intra teli 1:3 est ± 0.5%~± 0.2%.
8. Terror pressio pretii terroris et humilis pressurae potest poni secundum condicionem pressionis in situ. Cum condiciones pressionis vel humilis pressae in usu fiunt, instrumentum automatice resonabit et resonabit, efficaciter impediendo ad productionem salutis accidentia quae per pressionem fiunt.

Industria applicationis:
1. Industria petrochemica: Mensuratio viscositas et media particulata ut oleum crudum, oleum grave, oleum residua, slurry carbonum, etc.; Usitatius est throttling instrumentum in expolitione instrumentorum.
Metallurgicae metalla: Usus ad slurriam metiendam, aquam calculam lavandam, et fornacem furoris / gasi cocti clibani; idoneae ad conditiones operandas cum particulis solidis alto pulvere.
3. Electrica potentia scelerisque: Boiler cibus, desulfurisatio slurry, et cinis aquae magnae fluunt, capax est sustinendae summae temperaturae et humorum sordidorum.
4. Curatio aquae environmentalis: Mensura purgamentorum, pituitae refluxum, et excrementa aquarum immunditiarum continentium, cuneo autocineto structurae non prona ad depositionem pituitae.

Contact Us
PREV：Nullus prior articulumDEINDE：XG-DRB Dilbar flowmeter
FAQ Euismod Specifications

Q1: Quid est principium cuneum flowmetris, et quid maximum commodum eius?
A: Ex pressione differentiali iugulare profluentem, fluidum per cuneum V informatum in pipelineo stipitem fluit, et differentialis pressionis ante et post cuneum scandalum generatur. Rate fluxus computatur secundum pressionem differentialem. Core commoda: Nullus mortuus angulis, auto-rubens effectus, peritus metiendi altam viscositatem et solidam-particulam in medio sordido continens, mensurae stabilis etiam ad numeros Reynolds humilis, et subsidia detectionis bidirectionis fluxus.

Q2: Quid sunt requisita ad sectionem fistulae rectae fluens cuneatum?
A: longitudo breviorem quam laminam orificium, plerumque 5D in antica et 3D in dorso (D est interior diametri pipelini); Cubita, valvulae et reductores campum fluxum perturbare possunt, eas quam maxime vitare conantur; Per institutionem, anguli acuminati cuneis deorsum tendere debent, ut levia particularum solidorum fluxus curent et accumulationem vitent.

Q3: Sub quibus circumstantiis negotiationis mensurae impropriae?
A: Communes rationes: ① Clausus, cumulus fluidorum, lacus pressionis tibiarum; ② Cuneum induere et scalis iugulare spatium mutare; ③ Transfusor eminus et quadratus radix figurae moduli falsa sunt; ④ Viscositas medii insigniter differt a conditionibus calibrationis. Prioritizare iniecta signationem impulsum limborum et parametri transfusorum.

Q4: Utrum cuneum flowmeter regularem sustentationem indigeat?
A: Non movens partes, humilis cotidie sustentationem. Commendatur regulariter flare et pressione pipeline sub solida/alta pulvere conditiones mundare; Aperi tres valvae globi lancem valvae ad protegendum transfusorem in diuturno shutdown; Cum fistulae flaverint, debet fluere metra removeri ne scoria glutino scabendi superficiem cunei scandali et accurationem afficiat.

Perficientur Specifications: (Nam magnitudines supra DN300, pete societatem nostram)

Exemplar Nominal Diameter (mm) Ratio cuneus h / D * Fluxus dolor (m³/h) Longitudo (mm) Opus Pressura (MPa) Medium Temperature (℃) Aqua Calibration Accuracy (vel Oleum Calibration) Flange Standard
XG-LX-G-15 15 0.2 ~ 0.5 0.28 ~ 2.7 600 0.2 ~ 14 -20 ~ 300 0.2% / 0.5% GB9113-88
XG-LX-G-25 25 0.2 ~ 0.5 0.8 ~ 7.5 600 0.2 ~ 14 -20 ~ 300 0.2% / 0.5% GB9113-88
XG-LX-G-40 40 0.2 ~ 0.5 1.5 ~ 21 700 0.2 ~ 14 -20 ~ 300 0.2% / 0.5% GB9113-88
XG-LX-G-50 50 0.2 ~ 0.5 3 ~ 33 700 0.2 ~ 14 -20 ~ 300 0.2% / 0.5% GB9113-88
XG-LX-G-80 80 0.2 ~ 0.5 6 ~ 75 800 0.2 ~ 14 -20 ~ 300 0.2% / 0.5% GB9113-88
XG-LX-G-100 100 0.2 ~ 0.5 17 ~ 100 800 0.2 ~ 14 -20 ~ 300 0.2% / 0.5% GB9113-88
XG-LX-G-150 150 0.3 ~ 0.5 45 ~ 310 1000 0.2 ~ 14 -20 ~ 300 0.2% / 0.5% GB9113-88
XG-LX-G-200 200 0.3 ~ 0.5 68 ~ 460 1000 0.2 ~ 14 -20 ~ 300 0.2% / 0.5% GB9113-88
XG-LX-G-250 250 0.3 ~ 0.5 109 ~ 865 1200 0.2 ~ 14 -20 ~ 300 0.2% / 0.5% GB9113-88
XG-LX-G-CCC 300 0.3 ~ 0.5 155 ~ 1225 1200 0.2 ~ 14 -20 ~ 300 0.2% / 0.5% GB9113-88
