XG-GY series liquor Turbine flowmeter Manufacturers
Home / Product / Fluere metris / XG-GY series liquor Turbine flowmeter
  • XG-GY series liquor Turbine flowmeter
  • XG-GY series liquor Turbine flowmeter

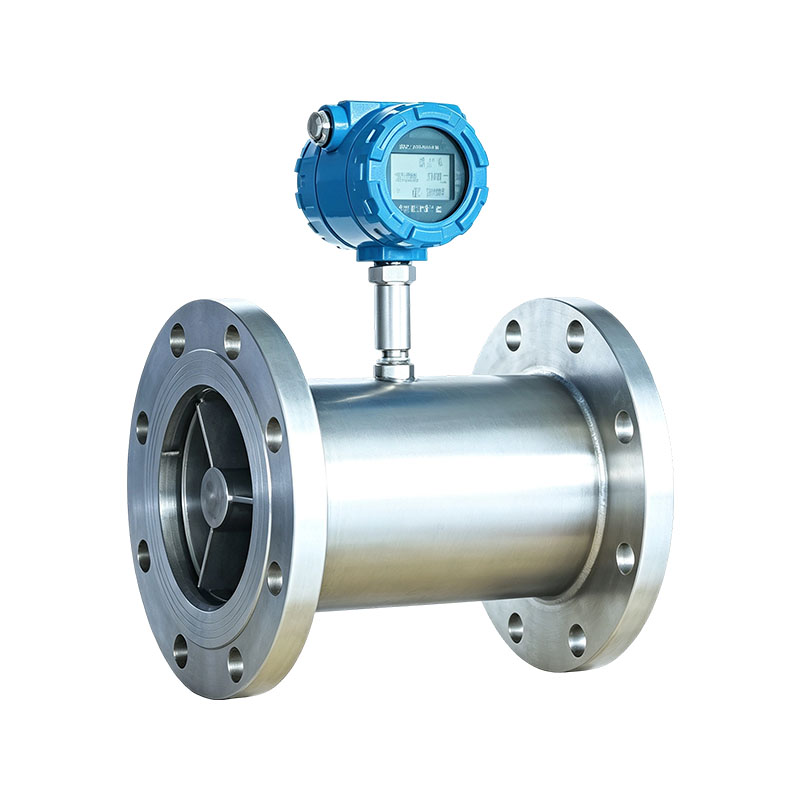

XG-GY series liquor Turbine flowmeter

Series XG-GY liquor turbinibus fluens est celeritas instrumenti mensurae innixa fluxus. Solebant metiri ratem fluere volutricibus liquidis repletis in pipelino clauso et continue fluens. Turbine societatis nostrae usus technologiae provectae et technologiae processus, cum stabilis operis effectionis, altae accurationis et multiplicium consiliorum structurarum, idoneos reddens pro usoribus eligendis. Productum late in industriis uti petrochemicals, metallurgia, investigationibus scientificis et alimentis.

Product Features:
1. Mensuratio detectoris obsistens et anti-corrosionis genera habet, cum amplis applicationibus productorum et stabilitate bona.
2. Turbinum profluxus temperatus range: -20~ C ° C, genus caliditatis -20~ CL ° C .
3. Amplitudo mensurae fluxus est magnus, plerumque usque ad 10:1, et extendi potest ad 40:1 pro casibus specialibus.
4. Fluxus sensorem plures modos connexionis habet, ut facile ad institutionem et usum efficiat.
5. Sensores turbinibus aptae sunt ad liquores viscositates metiendas, cum summa diligentia usque ad 0.2~1.0 gradus, et altas impressiones laborantes sustinere possunt.
6. Impulsor factus est ex ferro immaculato duplo et ulterius praecavendam curationem requirit. Fiunt gestus e graphite, tetrafluoroethylene modificato, carbide, et gemmis.
7. Intelligens circuii designa, munera potens, praetendens fluxum momentaneum et fluxum cumulativum. Humilis potentia consummatio; potest operari cum suis altilium; transmissio remota output 4-20mA, pulsus cum protocollo HART.

Praecipua venditionis puncta:
1. Alta mensura accuratio et repetitio praeclara: accuratio conventionalis attingere potest ±0,5% R, alta praecisio exempla ± 0.2% R attingere possunt; iterabilitas potest pervenire 0.05%, apta ad materias materiales oranti, massam massam condere, et datam mensurae stabilem ac certam.
2. Latitudo, responsio sensitiva: Ratio extensionis usque ad 1:20 pervenire potest, signum pulsus output, celeritas responsionis celeritas, nulla nulla calliditate, celeriter mutationes dynamicas in rate fluere capere et ad condiciones operandas magnis fluitationibus fluere accommodare.
3. Compact structuram, institutionem flexibilem et accommodationem: leve pondus, cum multiplici nexu methodus pro flangibus/fibulis paratae; Adhiberi possunt ad probationem explosionis, sanitariae, altae intentionis, pulsus / 4-20mA multi-signi output, apta docking cum systematibus PLC et DCS.
Parva pressura damnum, diu terminus stabilitatis: lenis cursus alveus, humilis pressura damnum, salvis pipeline industria consummatio; Libitum durum offensionis/lapidis gestus longam servitutem vitam habent sub condicionibus mundis mediarum et simplicium fundamentalium sustentationem.

Application industria :
1. Petroleum oleum expolitum industria: vecturae, onerationis et artis mensurae, ac esca nutriens rationem pellentesque, gasolini, lubricationis oleum et alia producta olei.
2. Industria chemica tenuis: processus ingredientia et mensurae materiales pro liquidis mundae, demissis viscositate, sicut menstrua organica, additiva et aqua pura.
3. Cibus et potus industria: sucus, oleum mandi, alcohol, etc; a, Turbine fluens fibulae sanitariae pro quantitatis materiarum rudium pascendis adhibetur.
4. Curatio aquae / industriae INCILE: fluxus vigilantiae et quantitatis aquae purgatae, aquae circulatio industrialis, et retis fistulae aquae purificatae.

Contact Us
PREV：XG-DBL Type Dynamic Pressure Differentialis Flu MeterDEINDE：XG-LG Series Flow Mensurae Throttling Fabrica
FAQ Euismod Specifications

Q1: Possuntne metra liquida Turbine fluere metra media metiri ut purgamentorum et instrumentorum solidorum particularum magnam quantitatem continentium?
A: Non idoneus. Turbines intus sunt impulsores et gestus, et solidae immunditiae facile gestus atteruntur et impellentibus impelluntur. Commendatur uti aliis generibus metrorum fluxus pro instrumentis sordidis et particulatis. Apta tantum ad viscositatem mundam, humilem viscositatem, liquoribus simplicibus.

Q2: Quid ictum praesentia bullae in pipelineo in mensuratione eventis habent?
A: Praesentia gas in liquoribus altas lectiones, fluctuationes mensurae causare possunt, et, in gravibus casibus, impulsum damnum impulsori facere possunt. Commendatur ut aer purificator fluvii fluvii instituat ut bullarum mediae fistula plena sit ac libera.

Q3: Utrum institutionem rectam fistulam sectionem requirat?
A: opus facit, facit. Fluvius plerumque requirit 10D fistulam rectam sectionem et amni 5D; cubiti, valvulae et diametri variabiles campum fluxum perturbare possunt et accurate mensuras minuere. Institutionem curare debet ut pipelineum impleatur et commendatur ut sursum et deorsum vel perpendiculariter instituatur.

Q4: Quoties sustentationem fieri solet?
A: Munda media, ut oleum et aqua pura, et disgregatio et impulsores mundi et gestus singulis annis 1-2. Commendatur inspicere medium singulis sex mensibus, si sordes continet vestigium. Focus inhibendo impulsorem ad induendum et fibra implicationem, ac regulariter ad inspectionem et calibrationem mitte.

DN (mm) Range @ ± 0.2 % (m³/h) Flow Range @ ±0.5 % (m³/h) Flow Range @ ±1.0 % (m³/h) Nominal Pressura (MPa) Maximilianus. Pressura damnum (MPa) Connection Methodi
Threaded Flanged Sanitary Summus Viscositas
2 — — — — 0.01 0.13 1.6 1.5 ✓
3 — — — — 0.04 0.25 1.6 1.2 ✓
4 — — — — 0.04 0.25 6.3 ✓
6 — — 0.1 0.6 0.1 0.6 6.3
16*
25*
40* 		0.08 ✓
10 — — 0.25 1.2 0.2 1.2 ✓
15 1.2 4 0.6 4 0.4 4 ✓ ✓
20 1.5 7 1.1 7 0.7 7 ✓ ✓ ✓
25 2 10 1.6 10 1 10 0.04 ✓ ✓ ✓ ✓
32 3.2 16 2.5 16 1.6 16 2.5 ✓ ✓ ✓ ✓
40 4 20 3 20 2.5 25 ✓ ✓ ✓ ✓
50 8 40 4 40 4 40 ✓ ✓ ✓
65 12 60 o 60 6 60 ✓ ✓ ✓
80 20 100 10 100 10 100 ✓ ✓ ✓
100 25 160 20 160 16 160 1.6
2.5 		✓ ✓ ✓
150 50 300 40 300 40 400 ✓
200 120 600 100 600 80 800 1.6 ✓
250 200 1000 160 1000 120 1200 ✓
300 — — 250 1600 180 1800 ✓

Nota: Res notatae "*" sunt ordines speciales. Medium viscositatis ambitus: ≤10 MPa·s; liquor temperatus: 20-120 ° C

XG-GY Liquid Turbine Flow Meter
Nominal Diameter -XXX 100 significat DN100
Structura Type Z Dolor omnes-in-unum
L Split-Type
Processus sensorem 1 Standard
2 Repugnans-gere
3 Corrosio-Probatur
Nominal Pressura 1 1.6 MPa
2 2.5 MPa
3 4.0 MPa
4 6.3 MPa
5 16 MPa
6 25 MPa
7 40 MPa
Connection Type G Type insertio
R Thread-Signatum Threaded Type
F Type flanged
J Fibulae (Wafer) Type
K Velox-Iungo Type
Sagacitas 1 0.2
2 0.5
3 1
Explosio-Probatur 0 Non Explosion-Probatur
1 Explosio-Probatur
Signum Output 1 Pulsus
2 4 - 20 mA
3 cum HART'
Integrated Power 1 Internum Pugna
2 Pugna 24 VDC Dual Selectable
3 Externi 24 VDC
