UQZ series magneticae levitatis pila gradu gauge Manufacturers
Home / Product / Level instrumentis / UQZ series magneticae levitatis pila gradu gauge
  • UQZ series magneticae levitatis pila gradu gauge
  • UQZ series magneticae levitatis pila gradu gauge

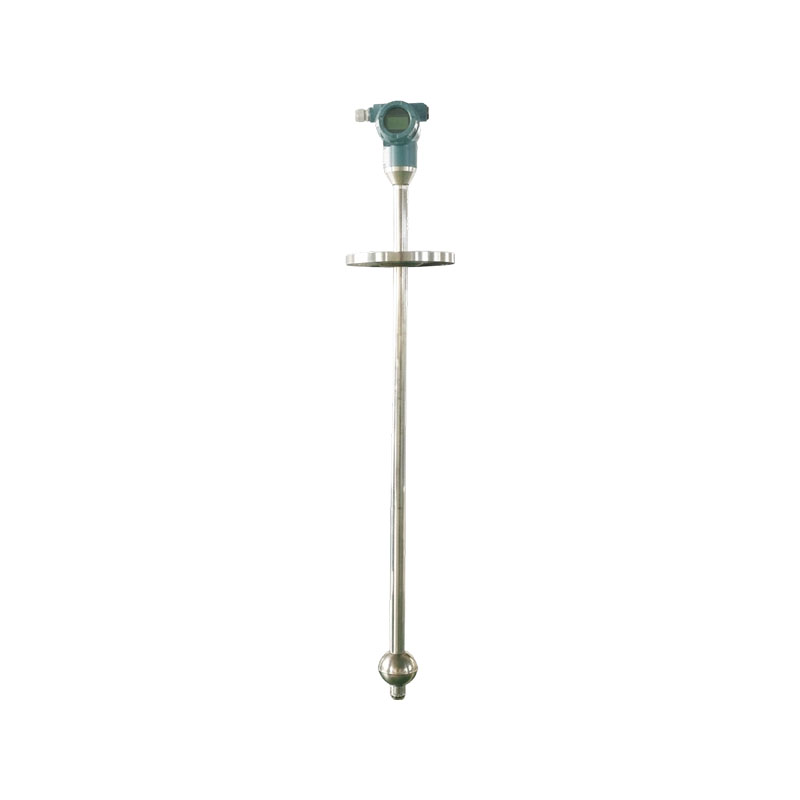

UQZ series magneticae levitatis pila gradu gauge

UQZ series levitationum magneticarum globi libellae libellae accurate disposita est, productis in domesticis et externis productis, commoda multarum similium productorum active absorbens et miscens, ac audacter ad structuram originalem productam per personas technicas societatis emendandas. Utendo magnetes GENERALES et electronicarum partium invectarum, productus habet commoda structurae simplicis, commodam usum, stabilem operationem, longam vitam serviendi, ac facilem institutionem ac tutelam. Magnetica levitatio pilae libellae libellae applicatur ad liquidum gradum mensurae et temperantiae in variis processibus industrialibus automationis. Late adhiberi potest pro liquido gradu mensurae, moderationis, et vigilantiae in campis sicut processus petrolei, processus cibi, curatio aquae, pharmaceutica, electricitas, graphio, metallurgia, naves, et fornaces ferri.

Product Features:
I. Simplex et certa structura: nulla composita electronica complexa, maxime composita e globulis fluitantibus, magnetibus, virgas duce, et compositionibus transibit, vibrationi resistens, vitae servitutis diuturnae, ac humilem sustentationem.
2. Multiplex signum in promptu sunt: ​​switch terror output configurari potest, et 4a 4- 20 mA analogon remotis transmissionis signum etiam ferri potest, ut facile coniungi cum PLC et DCS systemata temperare possit.
3. Apta variis instrumentis operantibus conditionibus: Corpus agmen ex 304/316L ferro immaculato, PP, PVC materiarum anti-corrosionum confici potest et aquam, oleum, acidum et alcali liquores corrosivorum metiri potest.
4. Forma institutionis flexibilis: Sustentationes summorum et laterum institutionem aptam ad piscinas et pixides repositas, facile ad institutionem et debug, operculum calibrationis aperire non oportet.
5. Explosio-probatio: Explosione-probationis specificationum, in condicionibus operationibus flammabilibus et explosivis adhiberi potest, ad salutem requisitis in locis cisternina chemicis occurrens.

Industria applicationis:
1. Industria petrochemical: varia genera olei repositoria et lacus intermedia reponendi, assequentes altam et humilem liquorem terrores et in-situm liquidum gradu vigilantia.
2. aqua curatio tutelae environmental: purgamentorum piscinam, dosing piscinam, piscinam aqua mundam, imperium aquae sentinae initium/statur, magna chemicae liquoris planities.
3. Potentia industria: Level vigilantia et interlocking terror potentiae herbae cibus lacus, aqua desalinated lacus, et lacus acidum basi medicina.
4. Apparatus industrialis generalis: instrumenti mechanici piscinae olei, statio hydraulica, copia aquae et adficio instrumenti, et adaptatio piscinae graduum deprehensionis.

Contact Us
PREV：UQZ-08 Longinquus TransmitterDEINDE：UZ-CZ genus magnetostrictive liquoris gradu METIOR
FAQ Euismod Specifications

Q1 : Utrum magnetica levitatio pila planum METIOR mensura viscosa media?
A: Viscositatem non idoneam ad media et facile scalas. Materiae viscosae proclives sunt ad globos fluitantis adhaerere, causando eas impeditas et inde in defectum mensurae. Sub condiciones operantes ubi viscositas medium humile est et in pariete adhaerere non facile normaliter adhiberi potest.

Q2: Num magnetica levitatio pila gradu METIOR demagnetize? Quid restat proximus?
A: Sub normalibus conditionibus operariis, chalybs magneticus non facile demagnetizatus est; Si diu temperaturis ultra-altatis exposita, labem magneticam accelerabit. Sub condicionibus non-morsivis et non-iactantibus, apparatum plurium annorum vitam habere potest. Commendatur ut regulariter reprehendo status actionis fluitantis pilae.

Q3: Quid sunt output signa levitatis magneticae pilae gradu coniecturam?
A: Maxime duo genera sunt: ​​switch output adhibetur pro umore et acuto gradu terrorem interlocking; 4-20mA output analogum, capax remotis continuis transmissionis liquidarum significationum gradu, cum PLC/DCS systematis connexis.

Q4: Quae sunt cautiones ad levitationem magneticam globum gradu coniecturae inaugurandi?
A: Vitare impedimentum cum motu globi fluitantis per mixtis scapulis intra pipeline et piscinam; Pressura et temperies Medii parametri instrumenti aestimatos excedere non possunt; lateris versio conscendit curare debet ut institutionem LABIUM aequalem esse et fluitans pila sursum deorsumque patens.

Ambiens Temperature: -20-80°C:
Relativum Umor: 5% -100% (including directum humorem)
Ambiens Pressura: 86 kPa-108 kPa
Pressura operans (MPa): <2.5 MPa
Insertio Profundum (mm): 200-6000
Mensurae Range (mm): 500-6000 mm;
Remota Transmissio Type: potentia copia VDC, 4-20 mA output
Mensuratio accurata: L = 500–1000 mm <±1.5%, L > 1000 mm <±1.0%
Zona mortua: 66-120 mm (cum aqua media);
Medium Temperature: -20-125 °C:
Medium Viscositas: < 0.05 Pa·s;
Medii densitatis: 0.35-0.5 g/cm³, 0.5-0.75 g/cm³, 0.75-1.5 g/cm³
Explosion-probationis rating: ibIICT5
Praesidium inclusum rating: IP65, IP68

Electio magne Tabula gauge supernatet Level

XG/UQZ Magnetostrictive Level Transmitter
Coniecturam Type 1 Locus Level Indicis
2 Remota-Transmissio Type
Dux Tube & Float Material P Immaculata Steel (304, 321, 316L).
F Fluoroplastic Lined
S PVC
Flange Material G Carbon Steel
P Immaculata Steel (304, 321, 316L).
S PVC
Actu operantes Pressura A 0.6 MPa (HG/T 20592–2009)
B 1.0 MPa (HG/T 20592–2009)
C 1.6 MPa (HG/T 20592–2009)
D 2.5 MPa (HG/T 20592–2009)
Flange Specification A DN80
B DN100
C DN125
D DN150
Medium Gravitatis Imprimis -XX
Mandans Longitudo -XX
CREPITUS-Probatur opus est O Non Explosion-Probatur
B Per se tutum
