XG/YPF series diaphragma pressura METIOR Manufacturers
Home / Product / Pressura instrumenta / Pressura METIOR / XG/YPF series diaphragma pressura METIOR
  • XG/YPF series diaphragma pressura METIOR
  • XG/YPF series diaphragma pressura METIOR

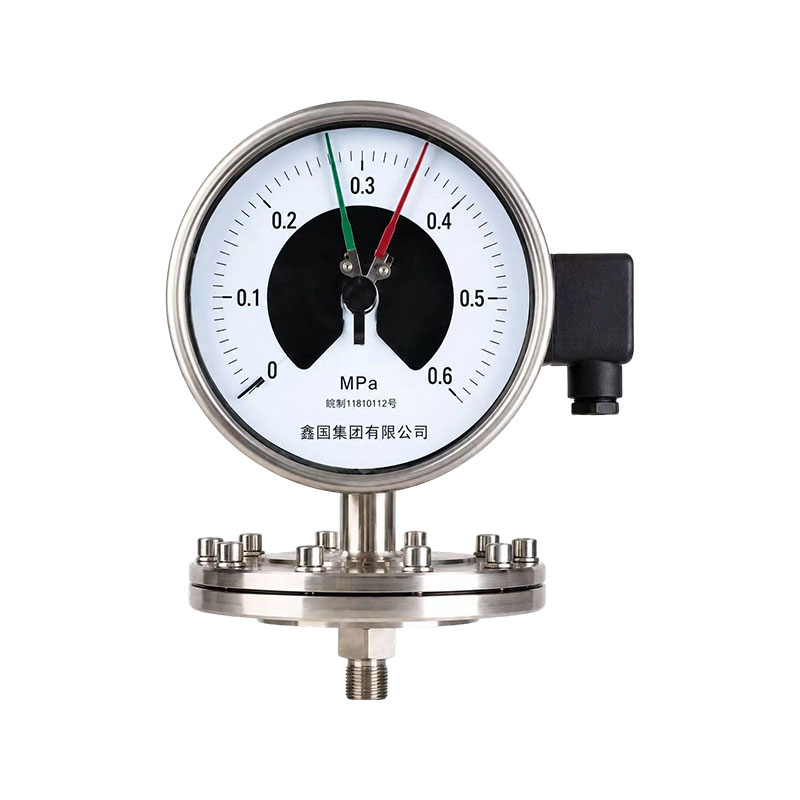

XG/YPF series diaphragma pressura METIOR

Series XG/YPF pressionis diaphragmatis METIOR est indicatio localis anti- corrosionis pressionis cum diaphragmate limato sicut pressionis sentientis elementum elasticum. Constat metiri diaphragma, iuncturam/flangam, connexionem virgae mechanismi transmissionis et casum. Medium mensuratum directe agit in membranam conruptam, causando obsessionem membranae cogente deformatam. Ampliatur per connexionem motus calces virgae, monstratorem impellens ad pressionem pretii in dial ostendendam. Medium membranae praeclusum est, et motus interiorem non intrat. Aptum est ad pressuram gasorum et liquorum corrosivorum, viscosorum, nec crystallizandorum facile metiendi.

Product Commoda:
1. Fortis anti- LENTUS facultatem: diaphragma pro pressione sentiendi elementum sine parvis foraminibus fluxum, ad viscosa, immunditia metiendis apta, instrumentis facile praecipitatur, nec ad metrum impeditionem aut valitudinem prona est.
2. Mensuram pressionem et pressuram parvam metiri potest, cum summa gravitate diaphragmatis et responsio sensitiva humili pressionis et pressionis mutationes, aptae ad mensurandum gas et liquidas condiciones pressionis humilis.
3. Repugnantiae corrosionis bonae: diaphragma fieri potest ex materiis ut 316, Hastelloy, PTFE, etc., instrumentis corrosivis obire et instrumenti structuram internam tueri.
4. Structura tutissima et certa est, cum onere capacitatis melioris quam vernalis pressionis tubi coniecturam; Corporis fabrica simplex et facilis est ad conservandum, et potest paribus cum offensa renitentibus et electricis contactu capita ad terrorem imperii consequi.

Praecipua venditionis puncta:
1. Non facile intercludere, non parvae canales fluunt, viscosis, granulis, et instrumentis facile praecipitatis, solvendo problema pressionis communis acus pressionis venenatis.
2. Mensuratio sensitiva humilis pressio; diaphragma pressionis elementi sentientis; celeriter responsio ad parvas pressuras et humilis-pressuras mutationes; stabulum mensurae.
3. Plures materiae membranae sunt e eligendis, incluso 316L, Hastelloy, et PTFE membranis, quae variis instrumentis corrosivis obire.
4. Bonum oneris effectus habet, resistentia pressionis instantaneae ictum, non facile est laedere pressionum sentientium partium, et summam operandi constantiam.
5. Munus lectio est flexibilis, et pressurae terrorem consequi potest per contactus distributionis. Potest etiam adhiberi ut exemplar acervus repugnans, cum institutione simplici et sustentatione, et postea facile.

Contact Us
PREV：XG/YXC series magnetica pressura contactus adiuvatur electrica METIORDEINDE：XG/Y-M sanitate diaphragmatis pressura METIOR
FAQ Euismod Specifications

Q1: Utrum diaphragma pressura gauges et diaphragma pressionis idem medetur?
A: Minime, non es. Diaphragma pressionis pressionis est ipsum elementum sentitivum, et medium directe agit in diaphragmate. Diaphragma diaphragmatis pressionis pressione nonnisi ad solitariam adhibitum est et liquori solitario nititur ut pressuram transmittat. Superficies membrana simpliciorem structuram habet et ad depressionem et anti-obstructionem condicionem aptam est, sed non ad condiciones corrosionis altissimas.

Q2: Estne diaphragma pressionis METIOR apta ad altam pressionem metiendam?
A: Non apta, maxime adhibita pro humilis-pressura et demissio- pressionis conditiones. Vernum pressionis fistulae medullis praepressionibus missionum summus praeferuntur, sicut extensionem excedentem diaphragmatis deformationem permanentem causare possunt, inde in mensuras inaccuratas.

Q3: Num facile est membranam cum particulis in medio laedere?
A: Sub condicionibus operationis normalibus, non facile est obsistere, sed diuturnum exesum a particulis duris et acutis membranam deferre potest. Ad condiciones cum pluribus particulis laborantibus commendatur uti membranis incrassatis vel anti-corrosionibus iactatis, ne directum ictum materiae acutarum in superficie membranae evitet.

Q4: Quae sunt communia labes pressionis diaphragmatis gauges?
A: Maxime debetur membranae deformatio, nulla cinguli, et immobilitatis regula. Plerumque ex overpressione, medio corrosione, et particula exesa causatur. Extra locum non uti; eligere materiam rectam membranam instrumentorum mordax; ducere regularem calibratiis ut mensura accurate.

Mensuratio range, pressura, portio magnitudinis

Model Dial Range Pressura-ferentem pars Dimensio D1
XG-YPF-100A 0~0.06, 0~0.1, 0~0.16, 0~0.25, 0~0.4
0~0.6, 0~1, 0~1.6, 0~2.5, -0.1~0
-0.1~0.06, -0.1~0.15, -0.1~0.3
-0.1~0.5, -0.1~0.9, -0.1~1.5
-0.1~2.4 MPa 		85
XG-YPF-100B 115
XG-YPF-100B-F
XG-YPF-150A 85
XG-YPF-150B
XG-YPF-150B-F 115
XG-YPF-100B / XG-YPF-100B-F 0~1.6, 0~2.5, 0~4, 0~6, 0~10, 0~16, 0~25, 0~40*
-1.6~0, -2.5~0, -4~0, -6~0, -10~0, -16~0, -25~0, -40~0*
-0.8~0.8, -1.2~1.2, -2~-2, -3~-3, -5~5, -8~8, -12~12, -20~20* kPa 		160
XG-YPF-150B / XG-YPF-150B-F 160

*0~40, -40~0, ± 20kPa specificatio: Impetus afferens partem dimensio D 85 est.

Parameter Specification
Sagaciter Classis 2.5
Ambiens Operating Temperature -40 ~ 70°C
Relativum Umor ≤ XC%
Temperatus Effectus Cum temperatura operating deviat a 20± 5°C, error additus temperatus non excedat 0.04%/°C
Opus Position Vertical adscendens
Praesidium Classis clausurae IP64

Materiae Pressure-Transmittendi Systema, Casus et Aliae Partes principales

Model Diaphragmaa Flange Connector signare Gasket Materia
XG-YPF-100A, XG-YPF-150A . Cr15Ni7Mo (PH15-7Mo) 1Cr18Ni9 NBR (Nitrile Flexilis) Aluminium mittite
XG-YPF-100B, XG-YPF-150B 316L (≤ 25 kPa) ; ; 1Cr18Ni9 PTFE 1Cr18Ni9
XG-YPF-100B-F, XG-YPF-150B-F 316L (≤ 25 kPa) ; ; 1Cr18Ni9 PTFE 1Cr18Ni9

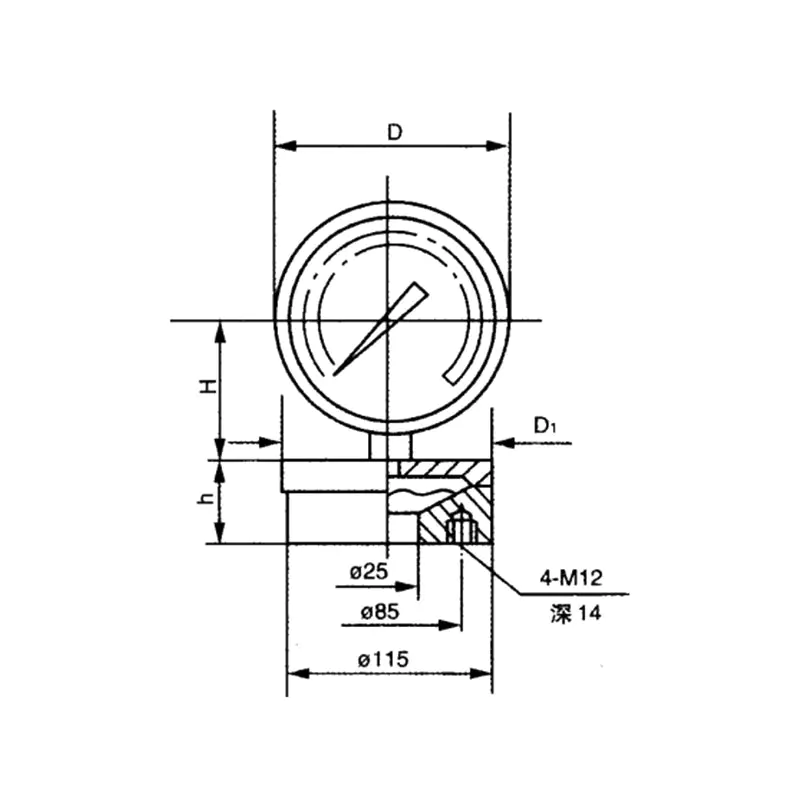

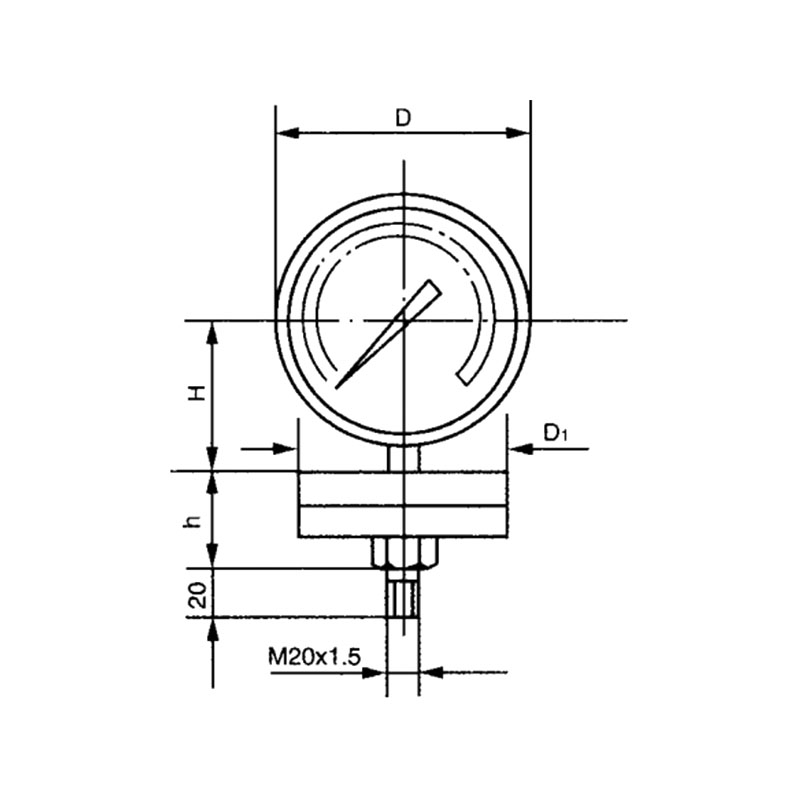

Dimensiones

XG-YPF-100 A/B  XG-YPF-150 A/B XG-YPF-100 B/F  XG-YPF-150 B/F
1001919 1001820
Model XG-YPF-100A XG-YPF-100B XG-YPF-100B-F XG-YPF-150A XG-YPF-150B XG-YPF-150B-F
D 100 110 110 Ø150 160 160
h 66 66 66 91 91 91
H 32 32 36 32 32 36
XG-Y P F-□-
XG Xinguo Brand
Y Pressura Gauge
P Diaphragmaa
F Corrosio repugnans
□ Causa exterioris diametri
100: Ø100 mm
150: Ø150 mm
□ Type
A: Diaphragma Pressura Cange, M20×1.5 Externi sequelae Connection
B: Steel Diaphragma Pressure Cange, M20×1.5 Externi sequelae Connection
B-F: Flange immaculatam Ferram Diaphragma Pressura Cange, 25-4.0 HGJ Faciem LABIUM
