UZC-A01F Maximum Temperature et Minimum Pressure Magnetic Liquid Level Gauge Manufacturers
Home / Product / Level instrumentis / UZC-A01F Maximum Temperature et Minimum Pressure Magnetic Liquid Level Gauge
  • UZC-A01F Maximum Temperature et Minimum Pressure Magnetic Liquid Level Gauge
  • UZC-A01F Maximum Temperature et Minimum Pressure Magnetic Liquid Level Gauge

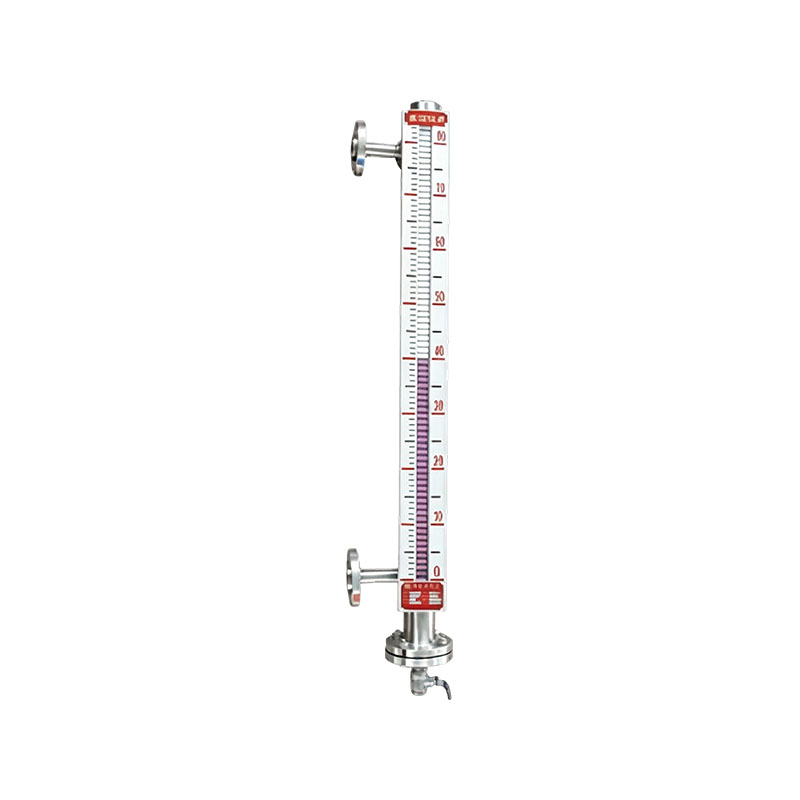

UZC-A01F Maximum Temperature et Minimum Pressure Magnetic Liquid Level Gauge

UZC-A01F summus temperatura et humilis-pressura magnetica seriei metiendae pro gradu mensurae adhibetur in ambitibus summus temperatus et humilis, cum maxima temperatura 450 et maxima pressione laborantis 2.5MPa. Summus temperatus et humilis pressio graduum magnetici coniecturam non habet caecos maculas in tota processu mensurae, cum clara ostensione et lectione intuitiva. Habet amplitudinem amplitudinis. Adhiberi potest cum XG/UQZ-08 fasciculo transmisso remoto, 4- 20 mA signo transmissionis remoto. Ordinari potest cum superiore et inferiori gradu virgarum ad terrorem liquidum ad modum superioris et inferioris perveniendi umorem, gradum terrorem et potestatem, remotis detectionibus, indiciis et temperantia.

Product Features:
1. Apta caliditas et humilis pressionis operandi condiciones: Corpus cylindricum efficitur ex materiarum gravissimarum repugnantium, quae altas medias temperaturas et pressuras humiles laborantes sustinere possunt. Structura est leve pondus ac gravem pressionem corporis cylindrici non requirit, eo magis cost-efficacem et aptam ad atmosphaericam et humilem pressuram summus temperatus apparatum piscinarum repositionis.
2. Mensurae plene separatae, tutae et certae: Mensuratio cylindrici et ostensio bracteae magneticae flip inter se distantes sunt, et medium non attingit partes ostensionis, ideo nullum est periculum lacus; ostentatio in-site vim non requirit et ad instrumenta leviter corrosivis aptari potest.
3. Dual-color magneticus flip columnae intuitivae ostentationis, range flexibilis: columnae flipercae rubrae et viridis directe legere possunt liquorem in loco situm, longo visibili spatio et nulla mensura caeca; Circumscriptio customised secundum necessitates potest esse, et modus institutionis varias formas sustinet sicut institutionem lateralem et supremi institutionem.
4. Functiones integrae expansionis et simplices sustentationes: ad libitum 4-20mA transfusor remotus et liquidus gradus terror switch aptari possunt ad consequendum remotum signorum output et interlock terrorem; Structura est simplex, non facile obstantia, et disassemble facilia et conservare.

Industria applicationis:
1. Industria chemica: Monitorium liquidorum graduum in atmosphaerico et magno reactionis temperatura praediorum, piscinarum repositionis apertarum, caccaborum evaporationum, et praediorum quiddam.
2. Cibus et industria pharmaceutica: Mensuratio campestris Liquidus lacus summus temperatus, lacus coquendi, lacus fermentationis, lacus aqua calida.
3. Thermal HVAC industria: summus temperatus aquae calidae piscinae, calor recuperatio vasti receptaculum, et vapor atmosphaericus condensatus lacus liquidi gradu vigilantia.
4. Environmental tutela industria: Summus temperatus purgamentorum tristique, vastum liquorem repositionis piscinam, et vastum gas curatio fovens repono piscinam liquidum gradu deprehensio.

Contact Us
PREV：UZC-AF Basic Level Magnetic GaugeDEINDE：UZC-A02F Maximum Temperature et Maximum Pressure Magnetic Level Cange
FAQ Euismod Specifications

Q1: Quid est maximum resistentiae et pressionis temperaturae capacitatis summus temperaturae et humilis-pressurae graduum magnetici coniecturam?
A: Resistentia conventionalis maximam temperaturam circa 350 attingere potest, et pressio applicabilis plerumque ≤ 1.6MPa est; Ad seriem low pressionem pertinet et pro vasis pressionis summus adhiberi non potest. Quaeso provide temperatura et pressionis modulos actuales cum ordinatio.

Q2: Num modica scala medii afficit usum summus temperatus et humilis-pressurae magneticae LACINA gradu gauges?
A: Scala in pariete interiore cylindrici impediet sursum et deorsum motum fluitantis, consequens in liquido gradu inaccurate ostensionem. Commendatur regulariter cylindrum mundare vel uti structuras anti-sticas ad condiciones scalas, quae media apta coquendo et scalis vehementes non sunt.

Q3: Utrum summus temperatus et humilis-pressio magnetico gradu METIOR METIOR terminum positionis?
A: Possibile est metiri interfaciem inter duo media immiscibilia, et requiritur ut densitas inter duo media sit ≥ 0.06g/cm ³. Dedicatum fluitantis instrumenti utendum est; Non commendatur metiri terminum positionis cum medium pronum est ad emulsificationem sub condicione temperatus.

Q4: Quae est ratio mutationis in actu liquoris medii in piscina obstante gradu liquido statico laminae flippingis in situ?
A: Plerique ex iis natant obstrictis immunditiis vel demagnetizationis ferri magnetici in ambitus summus temperatus. Supernatantem repressum esse oportet, postquam machinam pressionis emittere debet, et disassemblio cogente prohibetur. Non tap in flip indicator ad vitare damnum ad magnetem.

Mensuratio dolor: 300-15,000 mm
Curae mensurae: ± 10 mm
Camera Materia: 304, 321, 316 .
Operans Impetus: 1.6 MPa, 2.5 MPa
Temperature Range: ≤450 °C
Imprimis Gravitas Medii: ≥0.5 g/cm³
Differentia Medii densitas: ≥0.15 g/cm³
Viscositas Medii: ≤0.02 Pa·s
Output signum: 4-20 mA DC, 600 Q onus
Connection Flanges: DN20, DN25, etc.; Flange Standard: HG/T 20592-2009

XG/UZC-A01F Summus Temperature, humilis-Pressura Type
L Exhaurire Valve
□ Superioris / inferioris gradus SWITCH
Y XG/UQZ-08 Duo-Wire Transmitter
D Semi-detonating Type
I Ben Aung Type
□ Cum separatim Safety Obex
E XMT Bar-Graph Digital Testimonium — (1) Horizontal / (2) Vertical
J1 Vapor-Heated Jacket
J2 Vacuum Jacket
-□ Mensuratio dolor
-□ Medium Density
-□ Pressura opus
