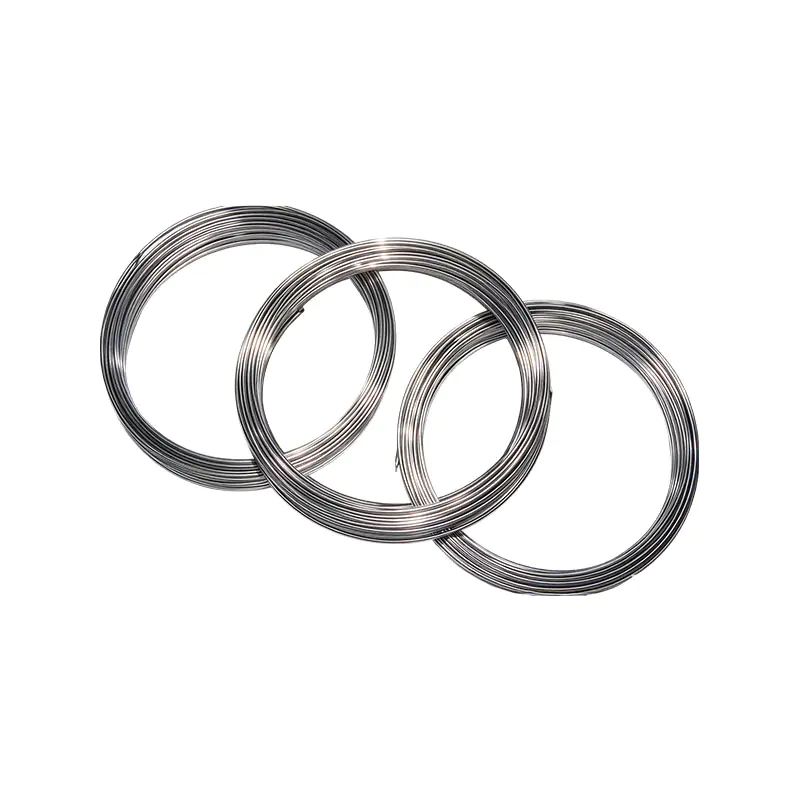

Cables armatae thermocouple

Funis thermocouplis cataphracti, vulgo ut filum armatum vel internationale, sicut in inorganicis velit cable thermocouple, est solidum totum e tubulo ferro incorrupto, magnesium oxydatum insulationis pulveris, ac filum thermocouple, compositum et compactum forma. Commoda pressionis resistentiae habet, resistentia terrae, flexibilitatem, miniaturizationem, et ieiuna responsionis tempus scelerisque. Materia est core thermocouples armato fabricandi.

Product Commoda:
1. Sensitiva scelerisque responsio et late temperatus mensurae range
Parva scelerisque inertia, celeritas sensitiva celeritas temperatura, potest alta et humilis temperatura iugis, stabilis thermoelectric potential output, et cito capere potest temperaturas mutationes in operando condiciones.
2. Excelsa vis mechanica, bendable ac facile ad institutionem
Testa metallica armata vibrationi et ictum repugnat, et mediocriter flectere potest, aptam faciens parva spatia instrumentorum et officinarum in-situm in-firingi.
3. Bona tutela signatio et fortis environmental aptabilitas
Nulla structura mineralis densa, humoris probatio, pulverulenta, et anti-oxidatio, cum certa velit effectus, et diu operari potest in asperis ambitibus industrialibus sicut pulvis et caliditas.

Praecipua venditionis puncta:
1. Lata temperatus measurement range et celeriter responsio celeritas
Parvae inertiae scelerisque, sensitivae temperaturae sentiendi, metiendi capax temperaturas tam altas quam inmissas, thermoelectric potential output stabile, et feedback real-time de in-situ temperaturae mutationes.
2. Flexibile et tremulum resistens, cum validis institutionem aptabilitas
Armorum corpus flexibile est, ictum et vibrationi repugnans, et facile in parvis instrumentis spatiis et locis pipelineis implicatis collocari potest.
3. Densa tutela, alta durabilitas
Insulatio mineralis structuram bonam habet obsignationem, umorem et pulverem resistentiam, oxidationis resistentiam, ac duras ambitus industriales sustinere, probabilitatem minuendi defectum et vitam serviendi amplificandi.

Contact Us
PREV：Nullus prior articulumDEINDE：Cablem armatae thermistor
FAQ Euismod Specifications

Q1: Quid est minimum inflexionis radij postulationem pro funibus thermocouplis armato?
A: Fere radius flexionis non minus quam 5-7 temporibus exterioris armorum diametri. Finis calidorum specillum quam maxime flecti non debet ad vitandam filum internae fracturae et mensurae temperaturae afficit.

Q2: Potestne armatae thermocouples directe metire summus temperatus media?
A: Finis superior temperatus mensurae a vagina materiali et scala thermocoupli dependet, et diversa exemplaria habent diversam repugnantiam temperaturae; Sub condiciones temperaturas ultra-caliditas, specificationes et parametris comprobare necesse est. Circumspectio nimis accelerat senescit et damnum dabit.

Q3: Quae sunt causae temperaturae mensurae signum saliendi et valores inaccurati?
A: Causae communes intercessionem electromagneticam includunt, pauper wiring contactum, et iacuit velit damnum ab humore. Commendatur ut genus scuti ad ambitus interveniendi, cum uno-puncto struendae clypei iacuit, et emissiones in terminationibus wiring reprimendam.

Q4: An funes thermocouples armatae extendi et scindi possint ad usum?
A: Commendatur directe coniungere et extendere ad voluntatem. Eadem fila cum divisione numeri pro extensione compensatio adhibenda est; Fila mediocria mixta potentialem calefactionem generabunt additional, faciens errores mensuras significantes.

1.1 Productum nomen, exemplar, numerus scalae, materia tubus exterior, et temperatura operans in Tabula 1-1.

Product Name Model Thermocouple Type Exterior Vagina Material Diameter exterior (mm) Max Operating Temp. (°C)
Armati Chromel-Nisil Thermocouple cable
Armati Chromel-Nisil-Mg Thermocouple cable 		KK
KN 		K
N 		GH3030, GH3039, 25Cr-20Ni 0.5; 1.0 500
1.5; 2.0 800
3.0; 4.0; 4.5; 5.0 900
6.0; 8.0 1100
Armati Chromel-Nisil Thermocouple cable
Armati Chromel-Nisil-Mg Thermocouple cable 		KK
KN 		K
N 		1Cr18Ni9Ti, 316L; 304 0.5; 1.0 400
1.5; 2.0 600
3.0; 4.0; 4.5; 5.0 800
6.0; 8.0 800
Armatae Chromel-Constantan Thermocouple Cable KE E 1Cr18Ni9Ti, 316L; 304 0.5; 1.0 400
1.5; 2.0 500
3.0; 4.0; 4.5; 5.0 600
6.0; 8.0 800
Iron-Constantan Thermocouple Cables KJ J 1Cr18Ni9Ti, 316L; 304 0.5; 1.0 300
1.5; 2.0 400
3.0; 4.0; 4.5; 5.0 500
6.0; 8.0 750
Cables-Constantan Thermocouple Cables KT T 1Cr18Ni9Ti, 316L; 304 0.5; 1.0 200
1.5; 2.0; 3.0
4.0; 4.5; 5.0 		300
300
6.0; 8.0 400
Cables Cables PtRh10-Pt Thermocouple KS S GH3030, GH3039, 25Cr-20Ni 1.0; 1.5 800
2.0; 3.0 900
Cables armatae PtRh13-Pt Thermocouple KR R 4.0; 4.5 1000
5.0; 6.0; 8.0 1100
Cables PtRh30-PtRh6 Thermocouple cataphractos KB B GH3030, GH3039, 25Cr-20Ni 4.0; 4.5 1100
5.0; 6.0; 8.0 1200


Nota: Proventus ex aliis materiis factis et cum diametris exterioribus diversis consultis inter elit et empt *orem provideri potest.
1.2 Product Signa
1.2.1 Bases funes metallo-armatos thermocouplos parere cum JB/T8205-1999 et GB/T18404-2001
1.2.2 Pretiosissimi metalli cataphracti rudentes thermocouples obtemperantes JB/T 8909-1999
1.2.3 CATAFRACTATUS Pt-Rh 30-Pt-Rh 8 retinacula thermocouples parere cum QB/T 2405-2004

1.3 Methodus designandi Cables Thermocouple armatae exemplum:

KK 4 G30 φ5.0 I GB/T18404-2001
KK Exemplar (KKKN, KEKJKTKS, KR, KB)
4 Numerus Cables: Duo-core Not specified; quattuor core significatur per "IV"
G30 Tubus Materialium: 1Cr18Ni9Ti significatur per "B"
GH3039 significatur per "G39";
GH3030 significatur per "G30".
25Cr-20Ni per "2520" significatur.
316L, 304
φ5.0 Cable Diameter exterior (Φ0.5-8.0 mm)
I Tolerantia Classis (I, II, III)
GB/T18404 Numerus Latin
2001 Latin Year

1.4 Productum dimensiones et licita deviationes cum Tabula 1-2 morentur.

Diameter exterior & Tolerantia (mm) KK/KN/KE/KJ/KT KS/KR/KB
Min. Wall Crassitudo (mm) Min. Thermocouple Wire Dia. (mm) Min. Nulla eget Crassitudo (mm) Min. Wall Crassitudo (mm) Min. Thermocouple Wire Dia. (mm) Minimum Thermoelement Wire Diameter (mm)
0.5 ± 0.025 0.05 0.08 0.04 / / /
1.0 ± 0.025 0.1 0.15 0.08 0.1 0.1 0.12
1.5 ± 0.025 0.15 0.23 0.12 0.15 0.15 0.17
2.0 ± 0.025 0.2 0.3 0.16 0.2 0.2 0.23
3.0 ± 0.030 0.3 0.45 0.24 0.3 0.3 0.34
4.0 ± 0.040 0.4 0.6 0.32 0.4 0.4 0.47
4.5 ± 0.045 0.45 0.68 0.36 0.45 0.4 0.52
5.0 ± 0.050 0.5 0.75 0.4 0.5 0.45 0.62
6.0 ± 0.060 0.6 0.9 0.48 0.6 0.45 0.8
8.0 ± 0.080 0.8 1.2 0.64 0.8 0.45 1.16

Nota: parvae adaptationes ad crassitudinem parietis tubi, filum thermocouple diametri, et velit crassitudo permittuntur pro funibus thermocouplis multi-nuclei vel unius nuclei armatae.

1.4 Thermocouple Characteres et Tolerantiae
Nam thermocouples armatae ex funibus thermocoupulorum armatorum diversorum exemplorum factorum, cum relatio coniunctas est 0 °C, thermoelectrica potentia obtemperabit GB/T 16839.1-1997, "Thermocouples-Part 1: Calibration Tabularum" et tolerantiae diversorum graduum praescripta Tabularum I-3.

Categoria Tolerantia Classis Model Type Tolerantia (°C) Temperatus dolor (°C)
Base-Metal Cables Thermocouple Cables I KK K ±1.5 °C vel −40 ~ 1100
KN N −40 ~ 1100
KE E −40 ~ 800
KJ J -40 ~ 750
KT T ±0.5 °C vel ± 0.4 %t 40 ~ 350
II KK K ±2.5 °C vel ± −40 ~ 1100
KN N −40 ~ 1100
KE E −40 ~ 800
KJ J -40 ~ 750
KT T ±1.0 °C vel ± 0.75 %t 40 ~ 400
III KK K ±2.5 °C vel ± 1.5 % t −200 ~ 40
KN N −200 ~ 40
KE E −200 ~ 40
KT T ±1.0 °C vel ± 1.5 % t −200 ~ 40
Pretiosa Metallum Cables Thermocouple II KS S ±1.5 °C vel ± 300 ~ 1100
KR R 300 ~ 1100
pt KS S ±3.0 °C vel ± 0.5 % t 300 ~ 1100
KR R 300 ~ 1100
II KB B ±0.25 %t 600 ~ 1200
III KB B ±4.0 °C vel ± 600 ~ 1200

Nota: t = valor absolutus temperatus mensurati (°C); "pt" significat gradum.

1.5 Insulation Resistentia
Resistentia insulatio inter fila bina et inter fila paria et vaginam exteriorem metietur. Nam rudentes diametro exteriore <1,5 mm, intentiones applicatae erunt 75 25 V DC; ad retinaculum diametri exterioris >1,5 mm, applicatae intentionis D 50 V DC. Nulla resistentia per metrum ad cella temperiem et ad temperaturas elevatas servabit praescripta Tabulae 1-4.

Test Environment exempla Min. Longitudo mensuræ (m) Test Temperature (°C) Min. Nulla Resistentia (MΩ/m)
Locus Temp. KK, KE, KJ, KT, KN, KS, KR, KB 1 25 ± 15 1000
Princeps Temp. KK, KN, KE, KJ, KS, KR, KB 0.5 500 ± 15 5
Princeps Temp. KT 0.5 300 ± 15 500

Nota: Materiae velitarum thermocouplorum armatorum et funes thermocouplorum armatorum limitatam electricam conductionem habent; Velit resistentia decrescit sicut funis longitudo augetur. Conductivitas per unitatem longitudinis a Sm' notatur ( = Q'·m'); nam funes seu thermocouples longiores quam 1 m, resistentia insulatio exprimitur in ·m vel MQ·m, resistente insulatione reciproce longitudine proportionali; pro brevioribus quam 1 m, exprimitur in MQ·m.
